SKU:
TN 00320137
€ 300,36
1-2 weeks delivery time
-
+
The Jabsco 23680-4003 Water Puppy is a 12V self-priming pump delivering up to 32 liters per minute. Built with a bronze body and stainless steel shaft, it suits larger bilge and washdown tasks. Compatible with 25mm hose and 1/2" BSP threads, it has a 1.2m self-priming capacity, draws 13A, and meets ISO marine standards.
- Description
- Ask a Question
-

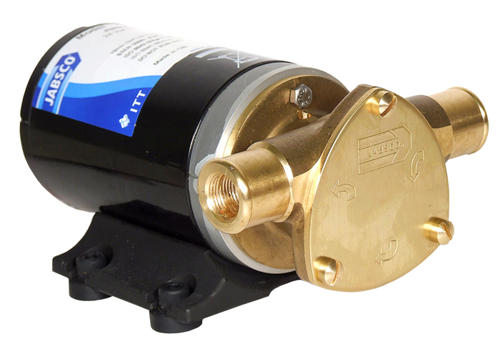

Jabsco 23680-4003 - Bilge and Deck Wash Impeller Pump Water Puppy 12V 32 l/min 1/2"
The Water Puppy 2000 by Jabsco is a robust self-priming pump with a bronze body and stainless steel shaft, delivering a higher flow rate ideal for larger bilge and washdown requirements. It is built for reliability and marine standards compliance.
- Maximum flow rate: 32 liters per minute (6.5 gallons per minute)
- Port size: 1/2" BSP female, compatible with 25mm (1") hose
- Replacement impeller part number: JAB-6303-0001-P
- Approved to ISO8846 marine ignition and ISO8849 marine bilge pump standards
- Fuse rating: 15A
- Flow rates at specific heads: 2100 LPH (554 US GPH) at 2m, 1920 LPH (507 US GPH) at 3m, 1500 LPH (396 US GPH) at 6m
- Dimensions: Height 75mm (3"), Length 195mm, Width 120mm (4.75")
- Series: Water Puppy 2000
- Voltage: 12V DC
- Current draw: 13A
- Self-priming capability up to 1.2 meters (4 feet)
- Inlet and outlet designed for 25mm (1") ID hose and 1/2" BSP female thread
- Not to be mounted vertically with impeller housing above motor
- Includes 1-year warranty
- Order number: 00320137, Supplier code: 23680-4003, Barcode: 671880547086
- General specifications: Voltage 12V, Yield 32 LPM, Suction height 1.2 m, Connections 2 x 1/2" internal / 25mm hose
-
