ID
1336838
$ 2,078.56
1-2 weeks delivery time
-
+
The Jabsco 22880-2003 flexible impeller pump end provides a self-priming bronze pump head solution for high-flow transfer and circulation duties, supplied as a replacement pump end only (no motor). It self-primes up to 3 m and delivers flow up to 200 liters per minute, using an oil-resistant nitrile impeller with a mechanical seal and stainless-steel shaft extension for marine-grade durability. Flanged ports and a 1-1/2 in BSP female threaded connection adapter support straightforward system integration, while the epoxy-coated aluminum motor adapter suits IEC 71 electric motors in B3 and B14 configurations with a D100 frame.
- Description
- Ask a Question
-

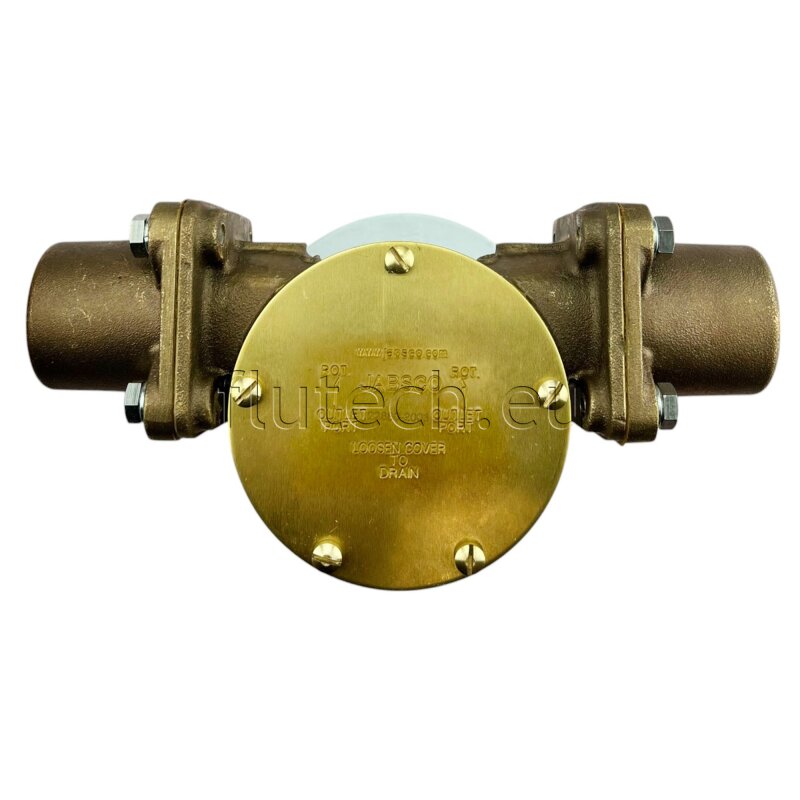

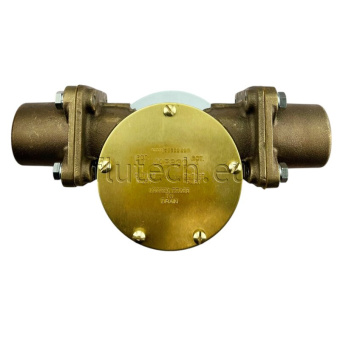

Jabsco 22880-2003 Bronze Flexible Impeller Pump Head Unit
The Jabsco 22880-2003 is a bronze flexible impeller pump head kit supplied as a replacement pump end only without a motor. Built for demanding marine and industrial fluid handling, it combines self-priming capability, high flow performance, and strong solids-handling characteristics in a compact pump-end assembly designed to mate with compatible motor-pump units.
Application
- Chemical processes
- Recirculation
- Filtration
- Machine tool coolants
- Lubricants
- Sump emptying
- Agricultural duties
- Factory duties
- Utility company duties
- Marine bilge pumping
- Saltwater pumping
- Mildly aggressive chemicals
- Abrasives in suspension
- Marine toilet waste pumpout
Warning: Do not pump gasoline, solvents, thinners, or other flammable liquids.
Compatibility
- Compatible with Jabsco 22880 series motor-pump units
- Suitable for electric motors to IEC 71 standard
- B3 motor configuration
- B14 motor configuration
- D100 frame (160 mm flange, 130 mm bolt circle, 9 mm holes)
Technical Specifications
Brand Jabsco Catalog / Part Number 22880-2003 Pump Type Self-Priming Flexible Impeller Pump (Pump End Only, No Motor) Size 200 Maximum Flow Up to 200 liters per minute Flow Reference Up to 52.8 gallons per minute at 1500 RPM Self-Priming (From Dry) Up to 3 m (9.8 ft) Temperature Range (Nitrile Impeller) 10 °C to 90 °C Connections 1-1/2 in BSP female thread in connection adapter (male thread fitting not included) Ports Flanged Shipping Weight 10.00 kg
Product Details
- Pump body: Bronze
- Impeller: Nitrile (oil-resistant)
- Shaft seal: Mechanical seal with nitrile, carbon, and ceramic materials
- Motor adapter: Epoxy-coated aluminum
- Shaft extension: Stainless steel (stub shaft)
- Cam: 1/1 cam
- Port adapter options mentioned: 1-1/2 in BSP threaded, 1-1/2 in NPT, and 2 in hose port adapter kits (to mount on the flanged ports)
Features
- Self-priming flexible impeller pump design
- Handles hard or soft solids
- Non-pulsating flow
- Gentle pump action for shear-sensitive products
- High flow rate compared to other pump types of the same size
- Compact form factor helps fit into smaller spaces and simplifies installation
- Few moving parts to wear or break
- Easy to service and maintain, with readily available spare parts
- Marine-quality bronze and stainless-steel parts suitable for seawater
Spare Parts
- Impeller (nitrile): Catalog # 836-0003
-
