The Jabsco 22870-2043 flexible impeller pump is a self-priming bronze unit with a flange adapter for marine and general-purpose circulation or transfer duties. It self-primes up to 5 m and delivers up to 80 l/min, while the oil-resistant nitrile impeller and mechanical seal support dependable operation. Designed for electric motors with a 19 mm shaft and IEC 71 mounting (B3 or B14) in a D80 frame, it includes a stainless steel shaft extension and uses 1 in BSP male threaded connections (fitting not included).
- Description
- Ask a Question
-

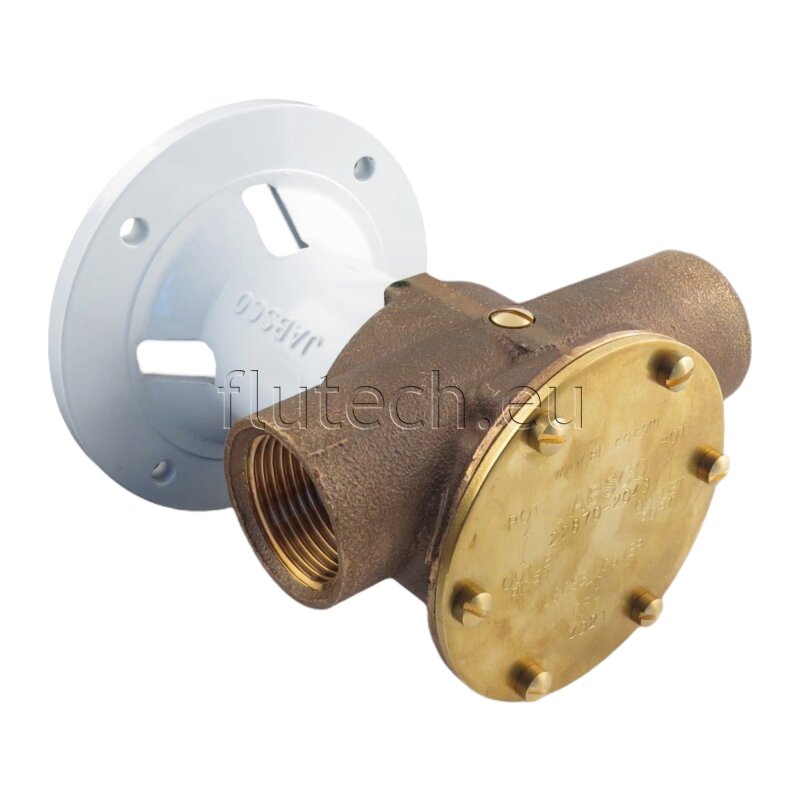

Jabsco 22870-2043 Flexible Impeller Pump Unit With Flange Adapter
The Jabsco 22870-2043 is a self-priming flexible impeller pump built with a bronze pump body and flange adapter. Designed for efficient priming and steady flow, it suits installations requiring a compact size 080 pump with 1 in BSP connections and compatibility with Jabsco 22870 series motor pump units.
Application
- Self-priming flexible impeller pump size 080
- Suitable for electric motors with a 19 mm shaft and IEC 71 mounting in a D80 frame
- Compatible with Jabsco 22870 series motor pump units
- Often used on Hamworthy oily water separator systems
Compatibility
- Jabsco 22870 series motor pump units
- Jabsco 22870-2543
- IEC 71 B3 mounting
- IEC 71 B14 mounting
- D80 frame (120 mm flange, 100 mm bolt circle, 7 mm holes)
Technical Specifications
Brand Jabsco Part Number 22870-2043 Pump Size 080 Self-Priming Height Up to 5 m Output Up to 80 l/min Connection 1 in BSP Connection Type 1 in BSP male threaded fitting (not included) Material Bronze Mounting Type Flange Impeller Hub Spline Drive Impeller Material Oil resistant nitrile Seal Type Mechanical seal Shipping Weight 2.60 kg
Product Details
- Pump body: Bronze pump body with flange adapter
- Included: Stainless steel shaft extension
- Cam: 2/3 cam
- Product portfolio: Impeller pumps; General Purpose Pumps
Features
- Self-priming performance up to 5 m
- Flow output up to 80 l/min
- Bronze construction with flange mounting for robust installations
- Oil-resistant nitrile impeller and mechanical seal for demanding service
- Motor fitment for 19 mm shaft and IEC 71 mounting in D80 frame
-
