The Jabsco 22610-9507 Ballast King DC flexible impeller pump delivers reversible ballast tank filling and emptying using a 12 Volt DC motor with a Reversing Polarity Switch. It pumps up to 15 GPM (57 LPM) and can add 125 pounds of ballast water per minute, while self-priming operation and a dry-run impeller support dependable onboard use. Designed for fresh and saltwater solutions, it operates from -15°C to 60°C and features ports with 1 Inch hose barb and 1/2 Inch BSP internal threaded connections, with installation guidance to keep the motor protected from moisture and to avoid use with petrol or products with a flash point below 37°C.
- Description
- Ask a Question
-

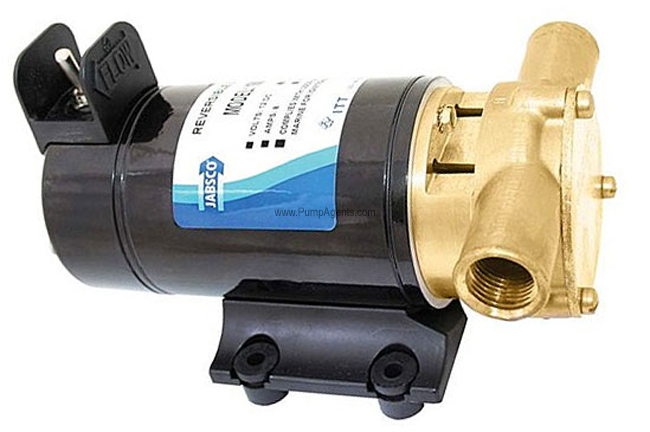

Jabsco 22610-9507 Ballast King Reversible DC Flexible Impeller Pump
The Jabsco 22610-9507 Ballast King is a powerful DC flexible impeller pump built to manage ballast water in marine systems. With a reversible motor switching setup, it supports straightforward filling, emptying, and even ballast transfer between tanks when installed correctly.
Application
- Ballast tank filling and emptying in marine applications
- Ballast transfer between two tanks (using the same reversible operation)
- For specified products including fresh and saltwater solutions
Technical Specifications
Catalog / Part Number 22610-9507 Motor Voltage 12 Volt DC Flow Rate Up to 15 GPM (57 LPM) Ballast Addition Rate Up to 125 pounds of ballast water per minute Ambient Temperature Range -15°C to 60°C (5°F to 140°F) Port Size 1 Inch hose barb and 1/2 Inch BSP internal threaded
Product Details
- Pump type: DC flexible impeller pump
- Reversible operation: Reversing Polarity Switch for filling or emptying ballast tanks (switch is part of the motor on this model)
- Priming: Self-priming
- Impeller: Dry-run impeller
- Flow direction option: Pump body can be rotated 180 degrees relative to the motor to change flow direction
Features
- Close-coupled to a 12 Volt DC motor
- Reversible design supports both fill and drain operation
- Higher flow version of the Ballast Puppy
Installation and Use Notes
- Install where the motor is protected from constant rain, washdown, or bilge water.
- Mount on a suitable flat surface in a dry, well-ventilated position with access for service.
- Use rubber grommets provided to minimize vibration, and do not over-tighten mounting screws.
- Do not run with a closed outlet.
- Do not use with petrol, petroleum products, or any products with a flash point below 37°C.
- All marine pumps discharging overboard must be installed with the overboard discharge well above both static and heeled waterlines.
Spare parts available.
-
