The Jabsco 22130-2721 macerator pump unit delivers efficient waste-water evacuation for marine and RV sanitation systems with 110 V / 240 V operation (also listed as 110/220 V and 110/230 V) at 50 Hz. A stainless steel cutter reduces solids to a maximum particle size of 3 mm (1/8 inch), while the self-priming design supports installation flexibility with priming performance listed up to 1.2 m. Built with long-lasting stainless steel bolts and wear-resistant components such as an oil-resistant nitrile impeller and stainless steel wear plate, it supports strong output up to 46 L/min at 1.5 m head and 36 L/min at 6 m head using the specified hose and threaded connections.
- Description
- Ask a Question
-

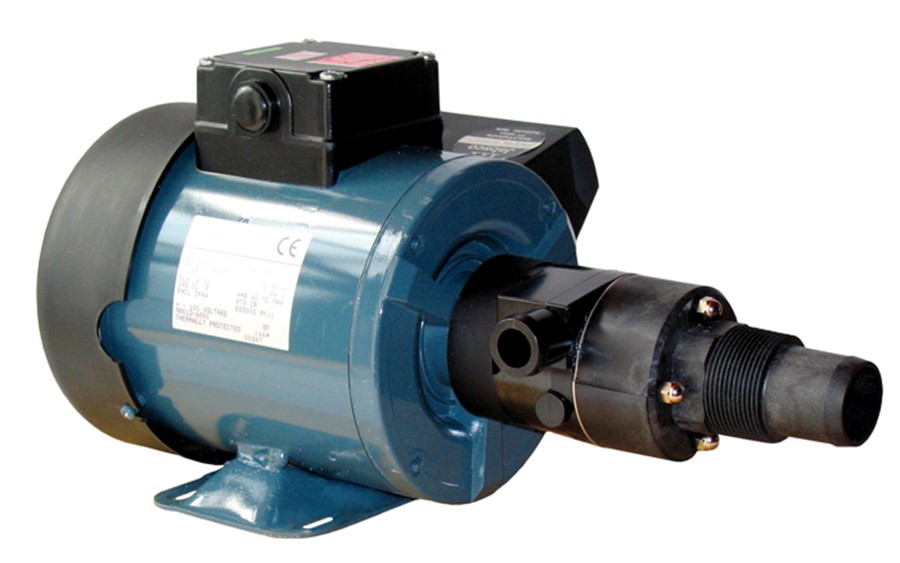

Jabsco 22130-2721 AC Macerator Pump Unit
The Jabsco 22130-2721 is a self-priming macerator pump and motor unit designed to support dependable waste evacuation in marine and RV sanitation systems. Its stainless steel cutting and wear components help reduce solids for smoother discharge, while the robust construction is intended for extended service life.
Application
- Marine sanitation systems
- RV sanitation systems
- Emptying holding tanks (when not in a discharge-restricted area)
Technical Specifications
Model / Supplier Code 22130-2721 Order Number 00322166 Barcode 671880551724 Voltage (As Listed) 110 V / 240 V; 110/220 V; 110/230 V AC Frequency (As Listed) 50 Hz Motor (As Listed) 1/4 HP, 2850 RPM, single phase Flow Rate Up to 46 L/min at 1.5 m head; 36 L/min at 6 m head Nominal Flow Rate (As Listed) 12.2 GPM Self-Priming (As Listed) Up to 1.2 m; up to 1.5 m; up to 4 ft from dry Maximum Particle Size After Cutting 3 mm (1/8 inch) Connections (As Listed) Inlet: 38 mm (1-1/2 inch) hose barb and 38 mm NPT (male); Outlet: 25 mm (1 inch) hose barb Additional Connections (As Listed) 38 mm intake; 19 mm exhaust Dimensions Height 21.6 cm; Width approximately 21.0 cm; Length 30.9 cm Weight 10.5 kg Shipping Weight (As Listed) 13.00 kg
Product Details
- Product portfolio: Electric waste water pumps
- Construction update: New version with long-lasting stainless steel bolts
- Wear components: Oil-resistant nitrile impeller with stainless steel wear plate (a neoprene impeller is also referenced)
- Cutter: Stainless steel cutter plate with a 4-blade design (as listed), reducing particle size to 3 mm maximum
- Duty guidance (as listed): Continuous working time 15 minutes; do not run dry for more than 30 seconds
Features
- Self-priming macerator pump and motor unit for waste evacuation
- Stainless steel cutting system for reduced particle size
- Stainless wear components to support durability
- Specified hose barb and NPT inlet options for flexible installation
-
