$ 856.23
1-2 weeks delivery time
-
+
The Jabsco 21140-2401 raw water impeller pump is a gear-driven, flange-mounted engine cooling unit for Ford Dover and Ford Dorset 6-cylinder engines, built with a bronze body and 1 in BSP female inlet and outlet ports. It is a self-priming size 80 pump with a nominal flow of 80 litres per minute at 1500 rpm, uses a spline-drive impeller hub, and includes a neoprene impeller; for service, a replacement impeller JAB-17937-0001-P is recommended.
- Description
- Ask a Question
-

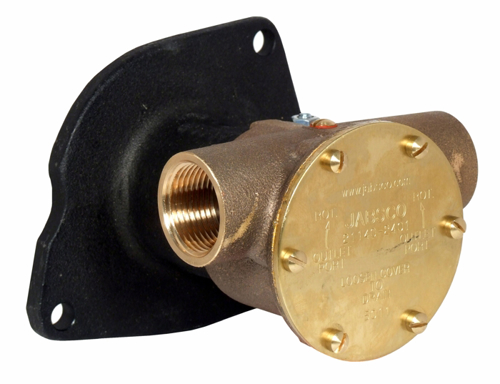

Jabsco 21140-2401 Flange-Mount Raw Water Cooling Pump
The Jabsco 21140-2401 is a gear-driven, flexible impeller raw water pump designed for engine cooling duties. Its bronze construction, flange mounting, and BSP threaded connections support secure installation and dependable operation on compatible Ford marine engines.
Application
- Engine cooling (raw water)
Compatibility
- Ford Dover 6-cylinder engines
- Ford Dorset 6-cylinder engines
Technical Specifications
Brand Jabsco Model 21140-2401 Supplier Code 21140-2401 Order Number 00320299 Barcode 671880561709 Pump Type Flexible impeller pump, gear-driven Mounting Type Flange Material Bronze Port Connections 25 mm (1 in) BSP threaded ports Port Thread 1 in BSP female Output 80 litres per minute Nominal Flow Reference 80 litres per minute (17.8 gallons per minute) at 1500 rpm Pump Size 80 (BG 080) Impeller Hub Spline Drive Impeller Included Neoprene impeller Impeller Part 920-0001-P Recommended Replacement Impeller JAB-17937-0001-P Shipping Weight 4.50 kg Warranty One year
Product Details
- Connection style: BSP threaded ports
- Installation: Mounts via flange on motor for secure installation
- Product portfolio: Impeller pumps; cooling water pumps
Features
- Self-priming engine cooling pump design
- Bronze body for durability
- 1 in BSP female inlet and outlet ports for straightforward plumbing
- Includes neoprene impeller for immediate installation
-
