The Jabsco 18840-0010 self-priming engine cooling pump is a bronze flexible impeller unit supplied with a 6-1/2 inch diameter A belt pulley for dependable marine and industrial cooling duty. It uses a neoprene impeller with a carbon/ceramic mechanical seal, features 1 inch hose ports, and delivers a nominal 8.9 gallons per minute (33 liters per minute) at 1500 rpm while self-priming from dry up to 2.4 m (7.8 ft). Designed for liquids from 45°F to 180°F, it is intended to run lubricated by water and should not be run dry for more than 30 seconds to protect impeller life.
- Description
- Ask a Question
-

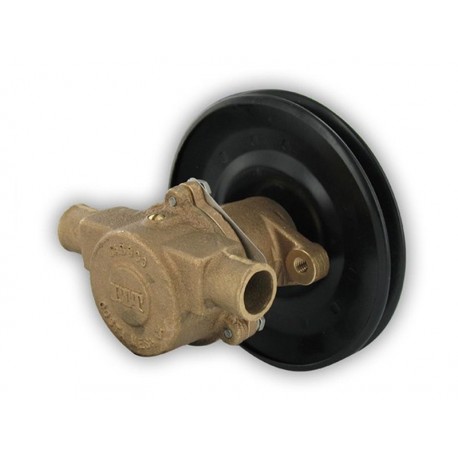

Jabsco 18840-0010 Self-Priming Engine Cooling Pump Unit
The Jabsco 18840-0010 is a self-priming flexible impeller engine cooling pump built for consistent cooling performance in harsh marine environments and demanding industrial use. Supplied with a 6-1/2 inch diameter A belt pulley, it supports belt-driven installations where reliable flow and dependable priming are critical to engine health.
Application
- Marine engine cooling
- Industrial engine cooling applications
Technical Specifications
Part Number 18840-0010 Catalog Number 18840-0010 Pump Type Self-priming flexible impeller engine cooling pump Nominal Flow Rate 8.9 gallons/min (33 liters/min) at 1500 rpm Self-Priming Capability From dry up to 2.4 m (7.8 ft) Port Size 1 inch hose ports Pulley 6-1/2 inch diameter A belt pulley Pump Body Material Bronze Impeller Material Neoprene Shaft Seal Carbon/ceramic mechanical seal Liquid Temperature Range 45°F to 180°F Mounting May be mounted in any position Mounting Hole Thread 3/8 inch x 16 (hex head screws specified) Recommended Belt A section pulley belt Belt Deflection Guidance 1/2 inch deflection midway between engine and pump pulleys
Product Details
- Configuration: Bare shafted pump only; supplied with a 6-1/2 inch diameter A belt pulley
- Rotation Note: Direction of rotation determines the location of the intake and discharge ports
- Priming Guidance: Suction lines must be airtight for the pump to self-prime
- Lubrication Requirement: The pump depends on water for lubrication; do not run dry for more than 30 seconds
- Hose Installation Note: 1 inch inside diameter hose is specified for the ports, clamped using two stainless steel band clamps per port
Features
- Self-priming operation
- Constructed from marine quality bronze and stainless steel
- Easy to service and maintain
- Handles hard and soft solids without clogging
- Will tolerate abrasive wear
- Can pump in either direction
- Will not airlock
Spare Parts Available
- Impeller: Catalog 1210-0001, impeller and spline seal, neoprene
- Shaft Seal: Catalog 96080-0080, service kit with impeller, seal, and O-ring
-
