The Jabsco 18777-0001-P impeller service kit supplies a flexible neoprene 10-blade impeller with a 16-spline, 16 mm shaft for fresh- or salt-water pumping, with resistance to small amounts of oil or diesel. It includes installation components such as a gasket, spline sealing plug, and lubricant, and is intended for use with Jabsco 50410, 22120, and 23800 series crankshaft drive pumps. With a 57 x 51 mm size and HH impeller profile, it replaces Jabsco 18777-0001B and 22120-00001 and is recommended for replacement at least once a year (or sooner depending on usage).
- Description
- Ask a Question
-
Jabsco 18777-0001-P Neoprene Impeller Kit With Spline Drive
The Jabsco 18777-0001-P is a neoprene impeller service kit designed for dependable marine pumping. It combines a flexible 10-blade impeller with a spline-drive hub and includes installation items to support efficient, long-lasting operation in fresh- or salt-water service, with resistance to small amounts of oil or diesel.
Application
- Fresh-water pumping
- Salt-water pumping
- Suitable where small amounts of oil or diesel may be present
Compatibility
- Compatible with Jabsco 50410 series crankshaft drive pumps
- Compatible with Jabsco 22120 series crankshaft drive pumps
- Compatible with Jabsco 23800 series crankshaft drive pumps
Technical Specifications
Supplier Code 18777-0001-P Order Number 00320233 Barcode 671880574860 Impeller Material Neoprene Insert Material Brass Number of Blades 10 Impeller Hub Spline Drive Shaft Type 16 Spline Shaft Diameter 16 mm Diameter 57 mm Depth 51 mm Dimensions 57 x 51 mm (width x height) Impeller Profile HH Shipping Weight 0.25 kg
Product Details

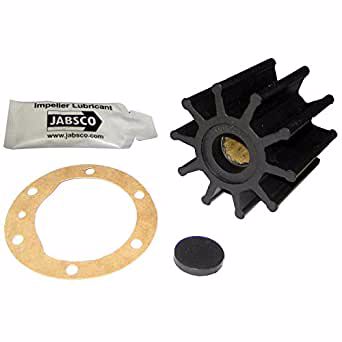

- Kit contents: Neoprene impeller, gasket, spline sealing plug, lubricant
- Included gasket reference: 3298-0000
- Quality focus: Produced under rigorous quality processes to support reliable, efficient, long-lasting performance
- Recommended replacement interval: At least once a year, or sooner based on usage
Features
- Flexible neoprene impeller for fresh or salt water service
- Resistant to small amounts of oil or diesel fuel
- Spline-drive design with 16-spline, 16 mm shaft fit
- Service kit format includes installation components for maintenance work
Replacements and Alternatives
- Replaces: Jabsco 18777-0001B
- Replaces: Jabsco 22120-00001
- Alternative to: Ancor J050022
- Alternative to: Jabsco 22120-0001
- Alternative to: Jabsco 18777-0001B
- Alternative to: Jabsco 18777-0001
- Alternative to: MAN 51.06506-0078
- Alternative to: MAN 51.06506.0078
- Alternative to: MAN 51 06506 0078
- Alternative to: MAN 51065060078
- Alternative to: Volvo 834794
- Alternative to: Volvo 876120-7
-
