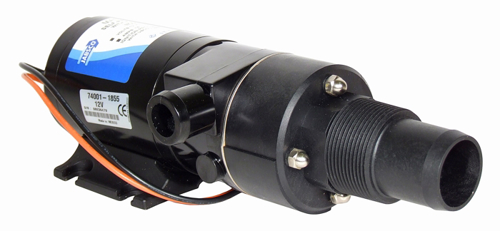

Jabsco 18590-2092 - Black Water Tank Macerator Pump 12V

Jabsco 18590-2092 - Black Water Tank Macerator Pump 12V

The Jabsco 18590-2092 Black Water Tank Macerator Pump with a 12V motor is a powerful and reliable solution for waste management in marine, RV, and other off-grid applications. This pump is designed to handle the toughest waste materials, grinding raw toilet waste into a uniform slurry for easy transfer and discharge. With self-priming capabilities, a heavy-duty 4-blade chopper, and dry-run protection, the Jabsco macerator pump ensures smooth, consistent performance even in demanding environments. The compact and easy-to-install design makes it ideal for use in black water holding tanks up to 900 liters (200 gallons), providing effective waste management for both recreational and commercial applications.

Key Features:

• 12V DC motor for reliable and efficient performance in marine and RV systems.
• Self-priming up to 0.6m vertical lift, allowing for quick and easy installation in various configurations.
• Heavy-duty 4-blade chopper for efficient maceration of toilet waste, creating a uniform slurry for easy discharge.
• Maximum output of 43 liters per minute (9 gallons per minute) at a 3-meter total head, making it ideal for high-flow applications.
• Designed for use with 38mm (1½”) bore inlet hose and 25mm (1”) bore discharge hose.
• Suitable for black water holding tanks with capacities up to 900 liters (200 gallons).
• Dry-run protection device ensures the motor is safeguarded against potential damage from running without fluid.
• Fully sealed motor for durability and long-term performance in harsh environments.
• Fuse size: 20 amp, offering safe and efficient operation.
• Compact dimensions (290mm x 120mm x 95mm) make it easy to install in tight spaces.

Specifications:

• Model: Jabsco 18590-2092 Black Water Tank Macerator Pump 12V
• Power Supply: 12V DC
• Motor: Fully sealed motor with dry-run protection
• Connections: 38mm (1½”) inlet hose, 25mm (1”) discharge hose
• Dimensions: 290mm (L) x 120mm (W) x 95mm (H)
• Fuse Size: 20 amp
• Output: 43 liters/minute (9 gallons/minute) at 3m total head
• Maximum Recommended Total Head: 6m
• Self-Priming: Up to 0.6m vertical lift
• Rated for: 15 minutes continuous operation
• Tank Capacity: Suitable for waste holding tanks up to 900 liters (200 gallons)
• Chopper Blades: Heavy-duty 4-blade design
• Weight: 2.19 kg (2.69 kg packed)
• Packaged Dimensions: 30.00cm (L) x 9.00cm (H) x 13.00cm (W)
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Flow Rate: Up to 43 liters/minute (9 gallons/minute)
• Pressure Range: Medium to high pressure (up to 6 meters head)
• Noise Level: Low noise during operation
• Corrosion Resistance: High resistance to rust and corrosion in marine environments

Compatibility and Application:

• Perfect for use in marine, RV, and off-grid applications requiring waste management solutions.
• Compatible with black water holding tanks with capacities up to 900 liters (200 gallons).
• Works with 38mm (1½”) inlet hose and 25mm (1”) discharge hose, providing flexible installation options.
• Ideal for installations on or near the black water holding tank for efficient waste transfer and discharge.

Benefits:

• Grinds and macerates waste into a uniform slurry, enabling easy transfer and discharge into waste management systems.
• Self-priming capability for ease of installation without the need for manual priming.
• Dry-run protection extends the lifespan of the motor, ensuring reliable performance over time.
• Heavy-duty chopper blades enhance the pump's ability to handle tough waste materials.
• Compact size allows for easy installation in small, confined spaces.
• High-flow output ensures optimal waste transfer in a variety of applications.
• Sealed motor and durable components provide resistance against rust and corrosion, ensuring long-term use in harsh environments.
