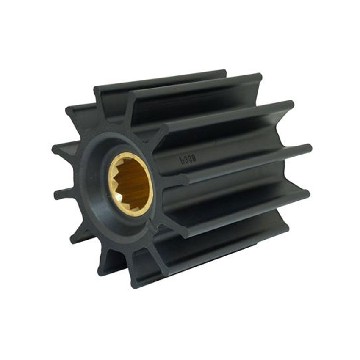

Jabsco 17936-0001B - Neoprene Impeller

Jabsco 17936-0001B - Neoprene Impeller

The Jabsco 17936-0001B Neoprene Impeller is a high-performance replacement designed for marine and industrial applications. Constructed from durable neoprene with a brass insert, this impeller ensures long-lasting, efficient performance. With its 12-blade design and spline drive system, it provides optimal fluid flow and reliable pump operation in various systems. It is engineered to withstand demanding environments and is ideal for pumps used in marine engine cooling, bilge pumps, and fluid transfer systems.

Key Features:

• Constructed from high-quality neoprene for superior durability and resistance to wear and tear.
• Brass insert ensures a secure connection and enhances the impeller’s long-term reliability.
• 12-blade design for efficient fluid flow and optimal pump performance.
• Spline drive system for easy and secure installation in Jabsco pump models.
• 95mm diameter, 88.9mm depth, and 25.4mm shaft diameter, ideal for high-flow applications.
• Suitable for marine, industrial, and agricultural systems requiring effective fluid circulation.

Specifications:

• Model: Jabsco 17936-0001B Neoprene Impeller
• Material: Neoprene with brass insert
• Number of Blades: 12
• Diameter: 95mm (3-3/4")
• Depth: 88.9mm (3-1/2")
• Shaft Diameter: 25.4mm (1")
• Drive Type: Spline Drive
• Weight: 1.20kg
• Maximum RPM: 3,500 RPM
• Operating Temperature Range: -20°C to 82°C (-4°F to 180°F)
• Fluid Compatibility: Water, light oils, and other compatible fluids
• Pressure Range: Medium
• Corrosion Resistance: Excellent resistance to rust and wear in harsh environments
• Material Hardness: 70 Shore A
• Recommended Replacement Interval: Every 12 months or when signs of wear appear
• Operating Pressure: Up to 4 bar (58 psi)
• Efficiency: Designed for smooth fluid flow with minimal energy consumption
• Noise Level: Low noise operation for a quieter pump experience

Compatibility and Application:

• Designed for use in Jabsco water pumps with a spline drive system.
• Perfect for marine engine cooling, bilge pumps, fluid transfer, and other fluid circulation applications.
• Compatible with pumps requiring a 95mm diameter and 25.4mm shaft diameter impeller.
• Ideal for both recreational and commercial marine systems, industrial equipment, and agricultural pumps.

Benefits:

• Ensures efficient fluid flow and reliable pump performance, preventing overheating and system damage.
• Durable neoprene material resists wear, extending the lifespan of your pump and reducing maintenance costs.
• Brass insert improves stability, ensuring a secure connection within the pump system and enhancing durability.
• Easy installation with a spline drive system, minimizing downtime and maintenance effort.
• Compact and energy-efficient design ensures optimal fluid circulation, reducing overall energy consumption.
• Corrosion-resistant materials guarantee long-lasting performance in challenging environments.
