The Jabsco 17370-0001B neoprene impeller is a 12-blade flexible rotor designed to deliver efficient, reliable pumping in marine and industrial pump applications. It features a double flat drive with a 25.4 mm shaft fit and 95 x 88.9 mm dimensions, plus a plastic insert for secure operation in both freshwater and saltwater environments. Built for demanding service, it supports speeds up to 3,500 RPM and is listed as an alternative to selected Caterpillar, Cummins, and Detroit Diesel part numbers as well as multiple Jabsco 17370-series references.
- Description
- Ask a Question
-

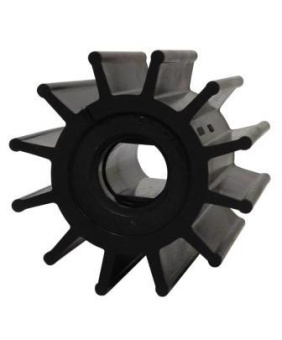

Jabsco 17370-0001B Flexible Neoprene Impeller Unit
The Jabsco 17370-0001B is a flexible neoprene impeller intended for use in marine and industrial pump systems where dependable priming and steady flow are essential. Its 12-blade design and double flat drive help maintain consistent pumping performance, while the plastic insert supports a secure fit on the shaft.
Application
- Marine and industrial pumps
- Bilge pump applications
- Cooling system applications
- Water transfer applications
- Suitable for freshwater and saltwater environments
Compatibility
Listed as compatible with or alternative to the following references:
- Caterpillar 3N1888
- Caterpillar 3N4859
- Caterpillar 3N8459
- Cummins 217308
- Cummins 3008503
- Detroit Diesel 8927570
- Detroit Diesel 8927571
- Jabsco 17370-0001
- Jabsco 17370-0001-P
- Jabsco 17370-0001-W
- Jabsco 17370-0001B
- Jabsco 17370-0211
- Jabsco 17370-3001
Technical Specifications
Brand Jabsco Supplier Code 17370-0001B Product Portfolio Impeller Material Neoprene Insert Material Plastic Number of Blades 12 Drive Type Double Flat Drive Shaft Diameter 25.4 mm (1 in) Diameter 95 mm (3-3/4 in) Depth 88.9 mm (3-1/2 in) Maximum Speed 3,500 RPM Operating Temperature Range -20 C to 80 C (-4 F to 176 F) Pressure Range Medium (up to 4 bar / 58 psi) Fluid Compatibility Water, light oils, and other compatible fluids Material Hardness 70 Shore A Weight 0.44 kg (approx. 0.64 kg packed) Shipping Weight 0.80 kg Order Number 00320223 Barcode 671880549356
Product Details
- Impeller type: Neoprene impeller (profile Q) with double flat drive
- Design intent: Reliable, efficient, long-lasting pumping performance under rigorous quality processes
- Recommended replacement interval: Every 12 months or when signs of wear appear
Features
- 12-blade layout supports efficient fluid transfer and enhanced pump performance
- Double flat drive helps ensure secure attachment to the pump shaft
- Neoprene construction with plastic insert supports durability in demanding service
- Suitable for both freshwater and saltwater applications
-
