ID
1336480
$ 17,125.67
1-2 weeks delivery time
-
+
The Jabsco 15780-0000 Vortex engine cooling pump delivers high-performance sea water cooling for Cummins marine diesel engines, combining a self-priming flexible impeller stage with a high-flow bronze centrifugal impeller. Built with a bronze pump body and marine-quality bronze and stainless steel construction, it supports flow up to 400 GPM and uses flanged ports for robust connections. This bare-shaft pump is designed for Cummins K38, K50, KTA38, and KTA50 applications, and matches Cummins part numbers 3393018, 4314820, and 4314522; the neoprene impeller relies on pumped liquid for lubrication and should not be run dry for more than 30 seconds.
- Description
- Ask a Question
-

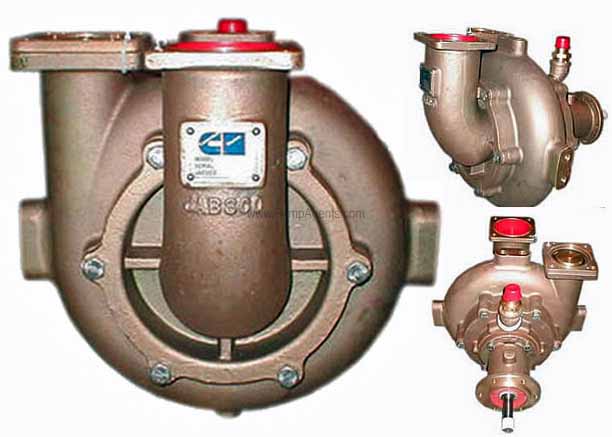

Jabsco 15780-0000 Cummins Vortex Engine Cooling Pump
The Jabsco 15780-0000 Vortex pump is a marine diesel engine cooling pump engineered for consistent temperature control where dependable sea water cooling flow is critical. Its two-impeller design combines self-priming capability with high-flow performance to help keep Cummins-powered vessels operating smoothly, even in demanding conditions.
Application
- Sea water engine cooling for Cummins engines
Compatibility
- Cummins K38 engines
- Cummins K50 engines
- Cummins KTA38 engines
- Cummins KTA50 engines
Technical Specifications
Jabsco Catalog Number 15780-0000 Equivalent Cummins Part Numbers 3393018 / 4314820 / 4314522 Maximum Flow Up to 400 GPM Pump Body Material Bronze Construction Materials Marine-quality bronze and stainless steel Port Connection Flanged ports Impeller Configuration Two impellers: flexible impeller (self-priming) and bronze centrifugal impeller (flow) Shaft Configuration Bare-shaft pump only
Product Details
- Pump type: Flexible impeller engine cooling pump with centrifugal flow stage
- Self-priming: Self-primes at low or high speeds when suction lines are airtight
- Impeller material note: The neoprene impeller depends on pumped liquid for lubrication
- Dry-run limit: Do not run dry for more than thirty (30) seconds to prevent impeller damage
Features
- Combines flexible-impeller priming with centrifugal high-flow capability
- Excellent self-priming, including from dry start-up (with airtight suction lines)
- Unaffected by small solid contaminants
- Easy to service and maintain
- Engineered to high standards for extended service life
Service Parts
- Major Overhaul Kit / Rebuild Kit: Catalog 99202-1000 (includes flapper assembly, shaft, plates, screw, mechanical seal, and ball bearings)
-
