$ 30.06
1-2 weeks delivery time
-
+
The Jabsco 11830-0000 end cover plate kit is a brass inspection cover for 3/4 in flexible impeller pumps, featuring a 76 mm (approx. 76.2 mm) diameter and six screw fixing holes for a secure, leak-resistant fit. It replaces Jabsco 3992 and Perkins 24887206, and is supplied under order number 00320319 with supplier code 11830-0000 and barcode 671880007672. Lightweight at 0.09 kg (approx. 0.29 kg packed), it is designed for quick installation and dependable service in marine and industrial pump systems.
- Description
- Ask a Question
-

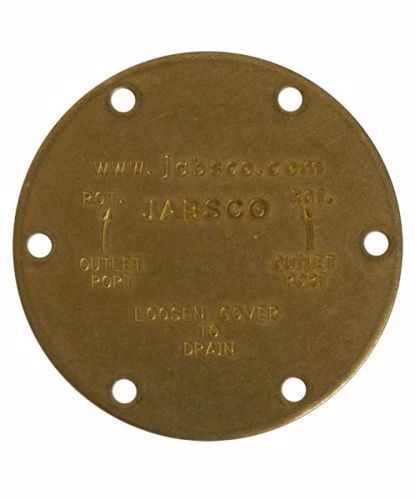

Jabsco 11830-0000 Flexible Impeller Pump End Cover Kit
The Jabsco 11830-0000 cover kit is an end cover plate used as an impeller inspection plate on 3/4 in flexible impeller pumps. Built as a replacement component for demanding marine and industrial environments, it secures the pump end with a six-hole fixing pattern for a precise fit and dependable sealing.
Application
- End cover plate (impeller inspection plate) for 3/4 in flexible impeller pumps
- Suitable for marine and industrial pump systems
Compatibility
- Designed for Jabsco 3/4 in flexible impeller pumps
- Replaces Jabsco part number 3992
- Replaces Perkins part number 24887206
- Alternate to Beta Marine 207-00507
- Alternate to Northern Lights 25-12013
- Alternate to SPX Johnson Pump 01-42398
- Alternate to Yanmar X0142398
- Alternate to Yanmar X0142398000
- Often used with gasket Jabsco 3298
- Often used with gasket Jabsco 3298-0000
Technical Specifications
Material Brass Pump Size 3/4 in Diameter 76 mm (approx. 76.2 mm / 3 in) Thickness Approx. 2.4 mm Hole Pattern Diameter (Center-to-Center) Approx. 65.4 mm Fixing Holes 6 Weight 0.09 kg Approx. Packed Weight 0.29 kg Shipping Weight 0.10 kg Operating Pressure Suitable for low to medium-pressure applications (up to 3 bar) Temperature Range -20 C to 60 C (-4 F to 140 F) Order Number 00320319 Supplier Code 11830-0000 Barcode 671880007672
Product Details
- Component type: Pump end cover plate / inspection plate
- Design: Six screw fixing holes for secure installation
- Purpose: Supports leak-resistant pump closure and simplifies impeller inspection during maintenance
Features
- Brass construction for durability
- Precise 6-hole fixing pattern for a tight fit
- Replacement option for multiple legacy part numbers
-
