The Jabsco 11810-0241 bronze utility pumping unit delivers dependable general-purpose transfer performance with a close-coupled 1/3 horsepower DC motor and a neoprene flexible impeller. Its bronze construction, lip-type shaft seal, and self-priming capability support portable marine service where debris tolerance and reliable suction lift are needed. Built for water and general-purpose pumping, it includes 3/4 inch garden hose external ports and 1/2 inch internal threaded connections, and the supplied neoprene impeller is recommended for liquid temperatures from 45°F to 180°F (7.2°C to 82.2°C).
- Description
- Ask a Question
-

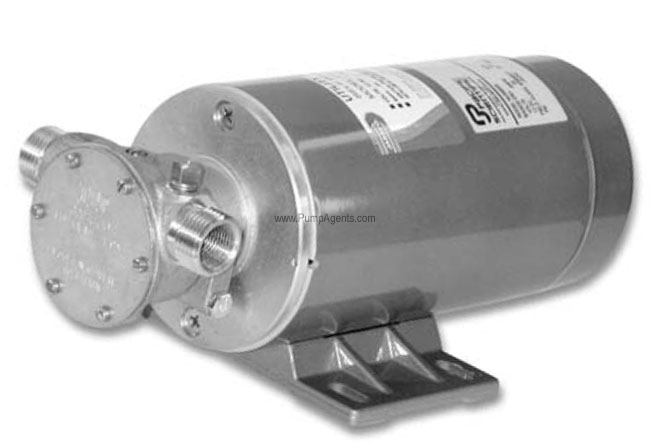

Jabsco 11810-0241 Bronze Utility Pumping Unit
The Jabsco 11810-0241 is a robust bronze utility pump designed for versatile transfer and service duties. Using a flexible neoprene impeller and a close-coupled DC motor, it supports reliable pumping where portable operation, self-priming performance, and durable construction matter.
Application
- General transfer pumping where self-priming and portable DC operation is desired
- Bilge pumping
- Bait tank service
- Wash downs
- General marine service
- Chemical processing (non-marine use referenced)
- Recirculation of aqueous media including coolants (non-marine use referenced)
- Sump emptying (non-marine use referenced)
Technical Specifications
Brand Jabsco Catalog / Part Number 11810-0241 Pump Type Flexible impeller utility pump Pump Body Material Bronze Impeller Material Neoprene Shaft Seal Type Lip type Motor Power 1/3 horsepower Motor Speed 1800 RPM Motor Voltage (As Stated in Text) 24 Volt DC and 12 Volt DC are both referenced Port Size 3/4 inch garden hose external and 1/2 inch internal threaded Flow (As Stated in Text) 10 GPM (38 LPM) and 11.2 GPM at 10 ft total head are both referenced Suction Lift (Dry) Approaching 10 ft Lift (Primed) Up to 22 ft Recommended Liquid Temperature Range (Neoprene Impeller) 45°F to 180°F (7.2°C to 82.2°C)
Product Details
- Series: 11810 Series pumps
- Design: Close-coupled pump and motor unit
- Duty: Continuous duty motor
- Serviceability: Replaceable wear plate, end cover, and cam
- Operation: Will not airlock; continues to operate even when air passes through the system
- Drain-out: Will pump out until the last drop of media has gone
- Mounting: May be mounted in any position without loss of efficiency; pump head down is suggested if vertical mounting is desired
- Port Orientation: Motor shaft rotation determines intake and discharge port location
- Impeller Options: Optional nitrile impeller is available (as referenced)
- Spare Parts: Spare parts available
Features
- Bronze construction for durable utility pumping service
- Self-priming performance for general transfer applications
- Debris tolerance and gentle pumping action to help with suspended solids handling
- Capable of pumping foams, emulsions, and gas-enriched aqueous materials (as referenced)
- Designed to pump across a wide range of viscosities (as referenced)
Important Notes
- Lubrication: Unit depends on the liquid pumped for lubrication
- Dry Running: Do not run dry for more than 30 seconds; lack of liquid can damage the impeller
- Safety: Motor meets USCG Electrical Standards for ignition protection on gasoline powered vessels (Title 33, Chapter 1, Part 183; Subpart 1), and the motor is not explosion-proof
- Priming: Suction lines must be airtight or the pump will not self-prime
-
