The Jabsco 10950-2401 engine cooling water pump delivers efficient, self-priming cooling-water circulation for a wide range of engine installations, using a gear-driven, flange-mounted design with a 3/4 inch female internal thread (3/4 inch BSP). Built with a bronze head and body, cast iron bearing housing, 316 stainless steel shaft, and a neoprene impeller with spline drive, it provides a 40 L/min flow rate (nominal 40 liters per minute at 1500 rpm) and offers straightforward replacement compatibility for multiple Jabsco and Johnson pump models, backed by a 1-year warranty.
- Description
- Ask a Question
-

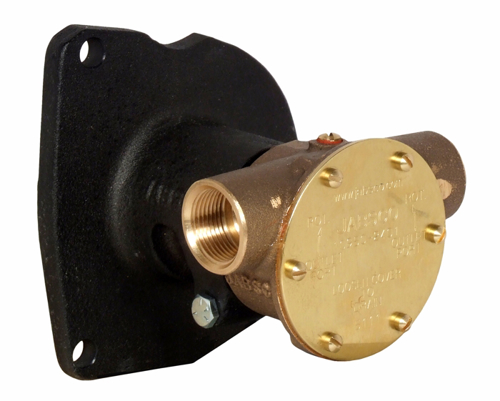

Jabsco 10950-2401 Flange-Mounted Engine Cooling Pump
The Jabsco 10950-2401 is an engine cooling water pump designed to provide efficient cooling performance across many marine and industrial engine applications. Its robust metal construction, self-priming capability, and flange mounting make it a dependable choice when reliable cooling-water circulation is required.
Application
This pump is listed as suitable for many engines, including Ford and Thornycroft applications, and additional engine brands noted below.
- Ford
- 2700
- 2701E
- 2704E
- 2704ET
- 2704ET A
- 2710
- 2711E
- 2712E
- 2713E
- 2714E
- 2720
- Leyland Thornycroft
- 240
- 250
- 251
- 331
- 360
- 360.1
- T360.1
- 380
- Sabre Ford Dorset
- 80
- 120
- 140
- Lehman Mercraft
- 80
- 120
- 150 Turbo
- American Diesel Ford (UK) 4 Cylinder Engines
- Buroli Ford 2401E
- Isotta Fraschini D 30.55-6L
- Saab
- F 4.254
- F 6.380
- Watermota
- Lion
- Scout
- Compatible among other with Ford Dover and Dorset 4-cylinder engines
Technical Specifications
Brand Jabsco Type Engine Cooling Pump Pump Size 040 (40-size) Flow Rate 40 liters per minute (nominal 40 liters per minute at 1500 rpm); 8.9 gallons per minute at 1500 rpm Connection 3/4 in female internal thread; 19 mm (3/4 in) BSP threaded ports Mounting Motor flange connection (flange mounted) Drive Type Gear driven Impeller Hub Spline Drive Material Bronze Material Composition Bronze head; cast iron bearing housing; 316 stainless steel shaft; neoprene impeller Warranty 1 year Supplier Code 10950-2401 Order Number 00320294 Barcode 671880572705 Shipping Weight 3.70 kg
Product Details
- Self-priming engine cooling pump (size 40)
- Includes a neoprene impeller
- Recommended spare impeller: 1210-0001-P (also referenced as JAB-1210-0001-P)
- Replaces Jabsco pumps: 10950-200, 10950-201, 10950-204, 10950-205, 10950-2101, 10950-2141, 10950-2701
- Replaces Johnson pumps: 10-24140, 10-24140-1
- Highly recommended to use only genuine Jabsco impellers and spare parts for optimal performance and durability
Features
- Delivers efficient cooling-water flow for engine applications
- Durable bronze and cast-iron construction with a 316 stainless steel shaft
- Flange-mounted design supports secure installation
- Spline-drive neoprene impeller supports reliable pumping performance
- Ford
-
