The Lewmar 110TT Bow Thruster is a 12V electric bow thruster with a 1.5 kW (2 HP) motor delivering 28 kgf of thrust for boats up to 9 m. It features a high-performance 5-blade propeller for maximum bidirectional thrust, self-healing thermal protection, plug-and-play control wiring, compatibility with joystick or touch controls, high-quality seals eliminating the need for an oil reservoir, and an easily replaceable anode.
- Description
- Ask a Question
-
Lewmar 110TT Bow Thruster 12V 1.5kW 28 kgf for Boats up to 9 m
The Lewmar 110TT Bow Thruster is a compact electric bow thruster engineered to improve low-speed handling, docking, and maneuvering for boats up to 9 meters in length. Operating on a 12V electrical system, it is powered by a 1.5 kW (2 HP) motor and generates 28 kgf of thrust through a high-performance 5-blade propeller, providing efficient thrust in both directions.
Key Features
- 12V electric bow thruster with 1.5 kW (2 HP) motor.
- Produces 28 kgf of thrust.
- Recommended for boats up to 9 meters.
- High-performance 5-blade propeller for maximum thrust in both directions.
- Self-healing thermal protection on the motor.
- Plug-and-play wiring for compatible control systems.
- Compatible with joystick and touch key controls.
- High-quality sealing system eliminates the need for an external oil reservoir.
- Easily replaceable sacrificial anode for simplified maintenance.
- Ignition Protected (IP) version available on request.
Technical Specifications

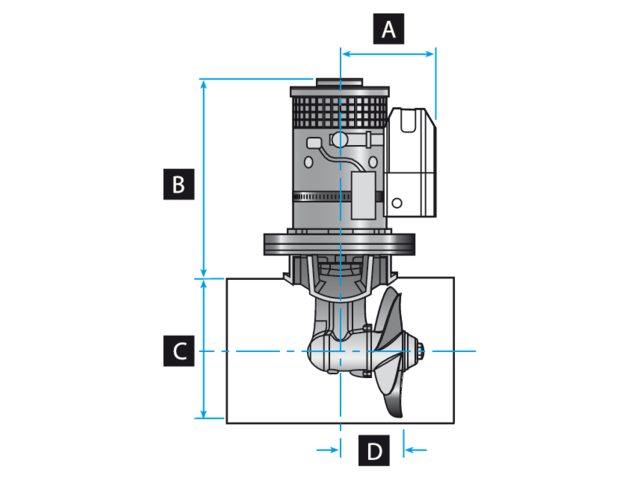

Osculati Part Number 85.400.110 Manufacturer Lewmar Manufacturer Part Number (MPN) 591101 Model 110TT1.5 EAN 743683028120 Country of Origin United Kingdom Voltage 12 V Power 1.5 kW (2 HP) Thrust 28 kgf Recommended Boat Length Up to 9 m Dimension A 123 mm Dimension B 208 mm Dimension C 110 mm Dimension D 64 mm
Control & Design
The Lewmar 110TT incorporates a high-efficiency 5-blade propeller that delivers maximum thrust in both directions for responsive maneuvering. The motor is protected by a self-healing thermal protection system, while plug-and-play wiring allows straightforward installation of compatible control panels. The thruster supports both joystick and touch key controls, features high-quality seals that eliminate the need for an oil reservoir, and includes an easily replaceable sacrificial anode for routine maintenance.
Package Contents
- Lewmar 110TT Bow Thruster.
-
