Super Marine Zinc Collar Anodes for Gori 3-Blade Propellers – Saildrive & Shaft Line

ID 1401079

$ 65.54

1-2 weeks delivery time

Type:

Saildrive 3 Blades
Shaft Line 3 Blades

Size:

Ø80/55x23
Ø95/60x34
Ø83/53x40
Ø95/63x47
Ø97/80x40
Ø127/90x50

Item:

860 g
302 g
844 g
1214 g
504 g
2120 g

Super Marine zinc collar anodes for Gori 3-blade propeller installations, available for both saildrive and shaft-line configurations. The range includes seven 4-hole collar anodes with outside diameters from Ø65 to Ø127 mm, inside diameters from Ø45 to Ø90 mm and heights from 23 to 50 mm. Each version is selected according to installation type and collar dimensions.

Description
Ask a Question

Super Marine Zinc Collar Anodes for Gori 3-Blade Propellers – Saildrive & Shaft Line

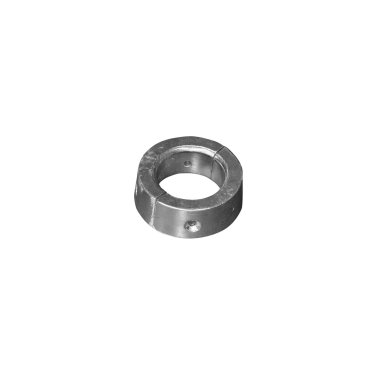

The Super Marine zinc collar anodes are sacrificial anodes designed for compatible Gori 3-blade propeller installations.

The range includes versions for both 3-blade saildrive and 3-blade shaft-line applications. All models use a four-hole collar configuration and are selected according to the required outside diameter, inside diameter and height.

Available Models

VDM Code	Application	Number of Holes	Outside Diameter	Inside Diameter	Height	Weight
ANO980	Saildrive 3 Blades	4	Ø80 mm	Ø55 mm	23 mm	0.302 kg
ANO982	Saildrive 3 Blades	4	Ø95 mm	Ø60 mm	34 mm	0.844 kg
ANO9201	Shaft Line 3 Blades	4	Ø65 mm	Ø45 mm	34 mm	Not specified
ANO981	Shaft Line 3 Blades	4	Ø83 mm	Ø53 mm	40 mm	0.86 kg
ANO983	Shaft Line 3 Blades	4	Ø95 mm	Ø63 mm	47 mm	1.214 kg
ANO984	Shaft Line 3 Blades	4	Ø97 mm	Ø80 mm	40 mm	0.504 kg
ANO985	Shaft Line 3 Blades	4	Ø127 mm	Ø90 mm	50 mm	2.12 kg

Key Features

Brand: Super Marine
Material: Zinc
Type: Collar anode
Application: Gori 3-blade propellers
Configurations: Saildrive and shaft line
Number of Holes: 4
Outside Diameter Range: Ø65–127 mm
Inside Diameter Range: Ø45–90 mm
Height Range: 23–50 mm

Select the correct anode according to the Gori installation type and the required outside diameter, inside diameter and height.
