ID
1345666
$ 3,682.21
1-2 weeks delivery time
-
+
The FP-3B 20x17 LH bladeset features a 20-inch diameter, 17-inch pitch, 3 blades, taper of 1:10, left-hand rotation, keyway dimensions of 5 mm width and 12 mm length, and fits a 40 mm shaft, made from Nickel Aluminum Bronze for product 735007.
- Description
- Ask a Question
-

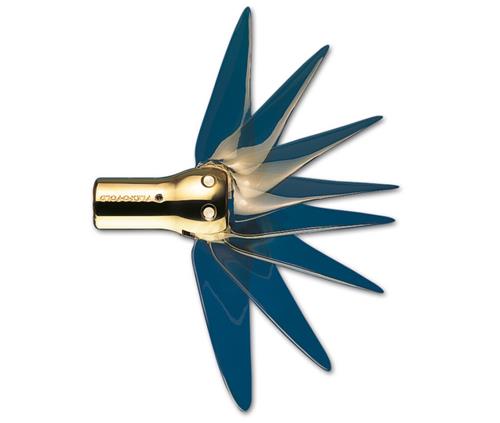

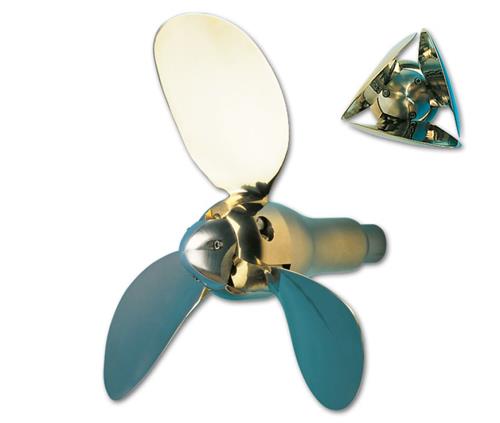

Flexofold Bladeset FP-3B 20x17 LH
This bladeset offers a 20-inch diameter and a 17-inch pitch with left-hand rotation. Constructed from Nickel Aluminum Bronze, it has 3 blades, a taper of 1:10, and fits a 40 mm shaft diameter with a maximum shaft hole diameter of 45 mm. It features keyway dimensions of 5 mm width and 12 mm length, compatible with product 735007.
Product Features
- Rotation Direction: Turning Left
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Taper: 1 : 10
- Max Shaft Hole Diameter: 45 mm
- Keyway Width: 5 mm
- Keyway Length: 12 mm
Technical Data
Article Code: SP7872017 Sales Unit: 1 piece Developed Area Ratio (DAR) %: 1 Shaft Diameter (mm): 40 Product Diameter (inch): 20" Product Diameter (mm): 508 Pitch (inch): 17"
Brand: Flexofold (Article code: SP7872017)
-
