ID
1366772
$ 7.31
1-2 weeks delivery time
Diameter, mm:
- 22-25
- 30
- 35
- 40
- 45
- 50
The Super Marine aluminium conical key propeller nut anode is designed for corrosion protection of marine propulsion systems. Suitable for shaft diameters from Ø22/25 mm to Ø50 mm, with thread sizes from M16 x 150 to M36 x 300. Manufactured from aluminium and supplied on plate with fixing configuration, it provides lightweight and effective sacrificial protection in seawater environments.
- Description
- Ask a Question
-

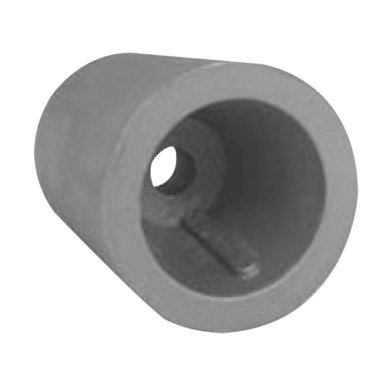

Super Marine Aluminium Conical Key Propeller Nut Anode – Ø22/25 to Ø50 mm, M16–M36 Thread
The Super Marine aluminium conical key propeller nut anode is designed to provide effective corrosion protection for propeller shaft assemblies. Manufactured from aluminium, it acts as a sacrificial anode to protect critical propulsion components in marine environments.
These anodes are designed for installation on propeller nut systems and are available in multiple sizes to match different shaft diameters and thread specifications.
Key Features
- Aluminium conical key propeller nut anode
- Material: Aluminium
- Lightweight sacrificial anode for corrosion protection
- Designed for marine propulsion systems
- Available for multiple shaft diameters and thread sizes
- Supplied on plate
Technical Specifications
Shaft Diameter Diameter Height Thread Weight SKU EAN Ø22/25 mm 33 mm 39 mm 16 x 150 0.049 kg ANOAH225 3600580670296 Ø30 mm 44 mm 52 mm 20 x 150 0.128 kg ANOAH230 3600580670944 Ø35 mm 44 mm 52 mm 24 x 200 0.11 kg ANOAH235 628309191702 Ø40 mm 50 mm 65 mm 24 x 200 0.186 kg ANOAH240 3600580672931 Ø45 mm 59 mm 74 mm 30 x 200 0.3 kg ANOAH245 3600580672948 Ø50 mm 71 mm 84 mm 36 x 300 0.46 kg ANOAH250 3600580672955
These aluminium anodes provide an efficient and lightweight solution for protecting propeller shaft systems and should be inspected and replaced periodically as part of routine maintenance.
-
