OMM AISI 316 Stainless Steel Fixed Propeller Shaft Rope Cutters Ø25–50 mm

Name: OMM AISI 316 Stainless Steel Fixed Propeller Shaft Rope Cutters Ø25–50 mm
SKU: CN OMM5225080

SKU: CN OMM5225080

ID 1415383

$ 157.40

1-2 weeks delivery time

Shaft Diameter:

OMM Fixed Propeller Shaft Rope Cutters are manufactured from AISI 316 stainless steel and feature a solid, toothed circular design for cutting ropes and lines around marine propeller shafts. Available for shaft diameters Ø25–50 mm, with external diameters of 80–120 mm and a uniform thickness of 17 mm.

Description
Ask a Question

OMM AISI 316 Stainless Steel Fixed Propeller Shaft Rope Cutters Ø25–50 mm

OMM Fixed Propeller Shaft Rope Cutters are designed for marine propulsion systems to cut ropes and lines that may become entangled around the propeller shaft.

Manufactured from AISI 316 stainless steel, these cutters feature a solid circular construction with cutting teeth around the outer edge. The fixed design provides a rope-cutting component for installation on the propeller shaft.

Product Features

Brand: OMM
Product Type: Propeller Shaft Rope Cutter
Material: AISI 316 Stainless Steel
Design: Solid / Fixed Circular Cutter
Cutting Profile: Toothed Outer Edge
Shaft Diameter Range: 25–50 mm
External Diameter Range: 80–120 mm
Thickness: 17 mm
Available Variants: 6

Fixed Rope Cutter Design

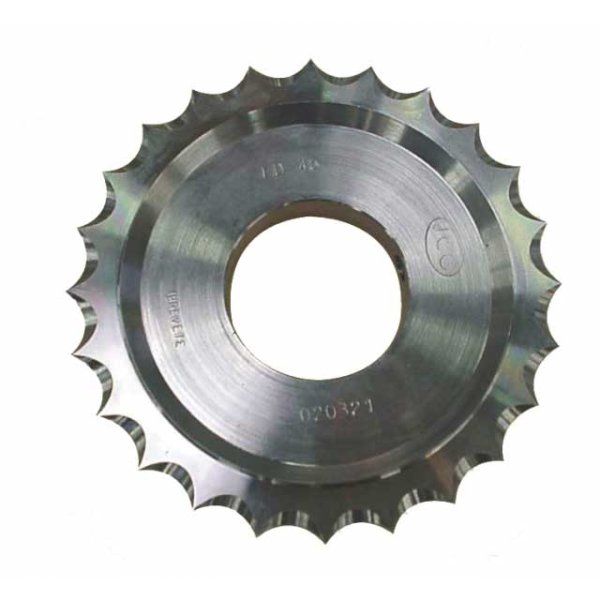

The OMM rope cutter uses a solid circular configuration with cutting teeth positioned around its circumference. The cutter is intended to cut ropes and lines that come into contact with the propeller shaft assembly.

All six models share the same 17 mm thickness. The shaft opening and external cutting diameter vary according to the selected model.

Available Models and Dimensions

Article	Shaft Diameter	External Diameter	Thickness
OMM5225080	25 mm	80 mm	17 mm
OMM5230080	30 mm	80 mm	17 mm
OMM5235100	35 mm	100 mm	17 mm
OMM5240100	40 mm	100 mm	17 mm
OMM5245120	45 mm	120 mm	17 mm
OMM5250120	50 mm	120 mm	17 mm

Technical Specifications

Manufacturer	OMM
Product Type	Fixed Propeller Shaft Rope Cutter
Material	Stainless Steel AISI 316
Construction	Solid Circular
Shaft Diameters	25 / 30 / 35 / 40 / 45 / 50 mm
External Diameters	80 / 100 / 120 mm
Thickness	17 mm
Available Configurations	6

Model Selection

Select the appropriate OMM fixed rope cutter according to the propeller shaft diameter. The corresponding external diameter is 80 mm for 25–30 mm shafts, 100 mm for 35–40 mm shafts and 120 mm for 45–50 mm shafts.

When selecting the cutter, check the shaft diameter and available installation space for the external diameter and 17 mm thickness.
