ID
1366688
$ 325.60
1-2 weeks delivery time
Diameter, mm:
- 22
- 25
- 30
- 35
- 40
Length, mm:
- 1000
- 1500
- 1750
- 2000

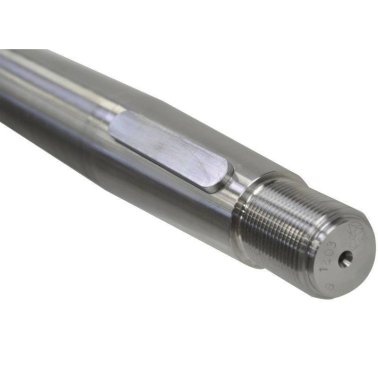

The Maucour Temet 26 propeller shaft is manufactured from high-strength duplex stainless steel, offering superior mechanical resistance and corrosion performance in seawater. Designed for shaft diameters from 22 mm to 40 mm and lengths from 1000 mm to 3000 mm, it allows the use of smaller diameters compared to equivalent standard shafts, reducing stern tube and hydrolube bearing sizing. Supplied with ISO cone, fitted key, metric thread, 0.08 mm straightness, and machining on one end.
- Description
- Ask a Question
-
Maucour Temet 26 Duplex Stainless Steel Propeller Shaft – 22–40 mm Diameter, 1000–3000 mm Length
The Maucour Temet 26 propeller shaft is a high-performance marine shaft manufactured from duplex stainless steel, combining high mechanical strength with excellent corrosion resistance in seawater environments.
Temet 26 is an evolution of Temet 25, designed to offer both improved performance and cost efficiency. Its high mechanical resistance allows the use of smaller shaft diameters compared to standard equivalents, reducing the required dimensions of stern tubes and hydrolube bearings.
Key Features
- Material: Temet 26 duplex stainless steel
- High mechanical strength
- Excellent corrosion resistance in seawater
- Allows reduced shaft diameter compared to standard shafts
- Optimized for marine propulsion systems
Standard Supply Features
- ISO cone
- Fitted key
- Metric thread
- Straightness: 0.08 mm
- Machined on one end (raw on flange side)
Technical Specifications
Shaft Diameter Length Code 22 mm 1500 mm MAUCANYIB22150 22 mm 2000 mm MAUCANYIB22200 25 mm 1000 mm MAUCANYIB25100 25 mm 1500 mm MAUCANYIB25150 25 mm 1750 mm MAUCANYIB25175 25 mm 2000 mm MAUCANYIB25200 30 mm 1500 mm MAUCANYIB30150 30 mm 1750 mm MAUCANYIB30175 30 mm 2000 mm MAUCANYIB30200 35 mm 1500 mm MAUCANYIB35150 35 mm 1750 mm MAUCANYIB35175 35 mm 2000 mm MAUCANYIB35200 40 mm 2000 mm MAUCANYIB402000 40 mm 3000 mm MAUCANYIB40300
The Maucour Temet 26 propeller shaft is an ideal solution for marine propulsion systems in pleasure boats, offering a balance between performance, durability, and cost efficiency.
-
