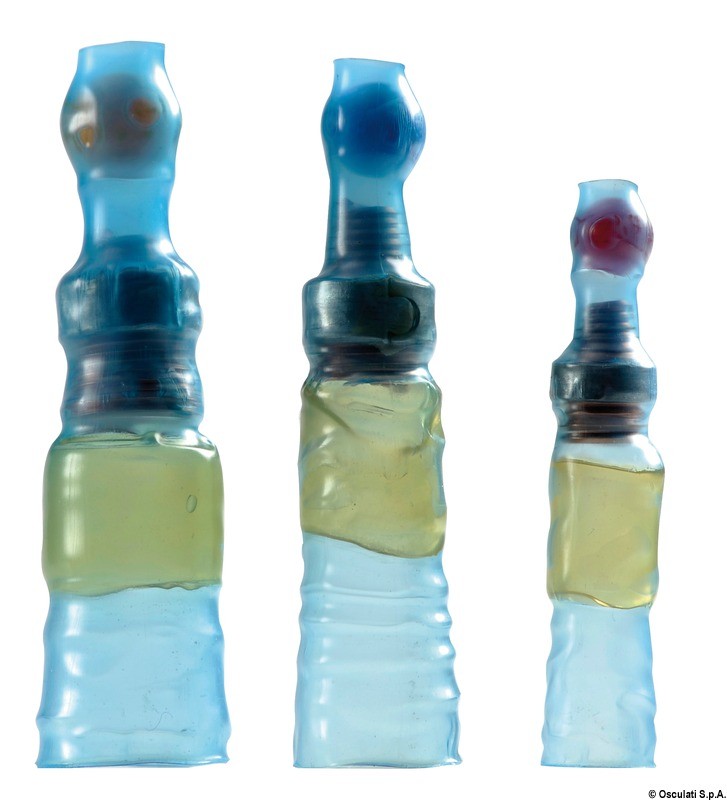

Osculati Waterproof Multi-Wire Solder Seal End Caps, 2-12 mm², Pack of 100

ID 1377183

$ 719.27

1-2 weeks delivery time

Type:

2–4 mm² Red
3.5–8 mm² Blue
7.5–12 mm² Yellow

The Osculati Waterproof Multi-Wire Solder Seal End Caps are designed for joining and sealing multiple electrical conductors in a single operation. Featuring an internal solder ring and adhesive-lined heat-shrink insulation, they create a secure, waterproof and corrosion-resistant electrical connection. Suitable for total cable cross-sections from 2 to 12 mm² and supplied in packs of 100 pieces.

Description
Ask a Question

Osculati 14.126.04-12 – Waterproof Multi-Wire Solder Seal End Caps, 2-12 mm²

Heat-shrink solder seal end caps designed for connecting multiple electrical conductors while providing waterproof sealing and electrical insulation. Each connector incorporates an internal solder ring and adhesive sealing system that creates a reliable electrical connection and environmental protection in a single heating operation.

Key Features

Designed for joining multiple conductors
Integrated solder ring for electrical connection
Adhesive-lined heat-shrink insulation
Creates a waterproof and corrosion-resistant seal
Suitable for terminating and joining multiple small cables
Fast installation using a heat gun or suitable heating tool
Color-coded by cable capacity range
Supplied in boxes of 100 pieces

Available Variants

Osculati Code	Total Cable Size Min (mm²)	Total Cable Size Max (mm²)	Colour	Packaging
14.126.04	2	4	Red	100 pcs
14.126.08	3.5	8	Blue	100 pcs
14.126.12	7.5	12	Yellow	100 pcs

Technical Specifications

Connector Type	Multi-wire solder seal end cap
Connection Method	Heat-activated solder connection
Seal Type	Adhesive-lined waterproof heat-shrink
Total Cable Capacity	2 - 12 mm²
Waterproof	Yes
Packaging	100 pcs
Brand	Osculati

Ideal for marine, automotive and industrial electrical installations where multiple conductors must be securely joined and protected from moisture, corrosion and vibration.
