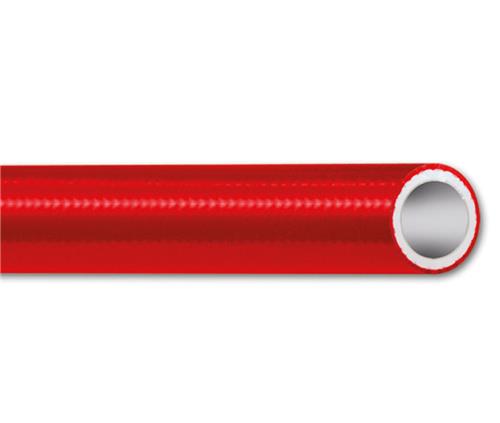

Drinking Water Hose Hot 13x20mm Roll 10m Red/White

ID 1347401

1-2 weeks delivery time

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

PVC drinking water hose 13x20 mm in a 10 m roll for hot water use, finished in red and white. Suitable for 15 bar working pressure and 45 bar burst pressure, bending radius 50 mm. Temperature range -20 to +60°C with 3.9 mm wall thickness. Article 4105013000.10, EAN 8720763559615.

Description
Ask a Question

Drinking Water Hose Hot 13x20mm Roll 10m Red/White

PVC drinking water hose for hot water use with red and white color combination. Suitable for working pressure 15 bar and burst pressure 45 bar. Temperature range -20 / +60°C.

Features

Inner wall material: PVC
Color: Red/White
Bending radius: 50 mm
Working pressure: 15 bar
Burst pressure: 45 bar
Wall thickness: 3.9 mm

Technical Data

Article	4105013000.10
Sales Unit	1 roll
Inner Diameter (mm)	12.3
Outer Diameter (mm)	20
Roll Length (m)	10
Working Pressure (bar)	15
Burst Pressure (bar)	45
Bending Radius (mm)	50
Temperature Range (°C)	-20 / +60
Temperature Max. (°C)	60
Wall Thickness (mm)	3.9
Ean Code	8720763559615

Brand: White Label Article code: 4105013000.10 Barcode: 8720763559615
