ID
1359248
$ 9.55
1-2 weeks delivery time
Size, mm:
- 37-40 mm
- 40-43 mm
- 47-51 mm
- 43-47 mm
- 51-55 mm
- 55-59 mm
- 59-63 mm
- 63-68 mm
- 68-73 mm
- 73-79 mm
- 79-85 mm
- 85-91 mm
- 91-97 mm
- 97-104 mm
- 104-112 mm
- 112-121 mm
- 121-130 mm
- 130-140 mm
- 150-162 mm
- 162-174 mm
The Damesa T-Bolt hose clamps are heavy-duty AISI 304 stainless steel clamps for hard hoses and large diameters, covering ranges from 37–40 mm up to 162–174 mm. Depending on the size, they feature 22 mm, 27.5 mm or 31 mm band width, 0.8 mm, 1.0 mm or 1.2 mm band thickness, and M7, M8 or M10 bolt size. Designed for heavy-duty clamping of high-diameter hard hoses, this range is suitable for demanding installations where a strong and secure hold is required.
- Description
- Ask a Question
-

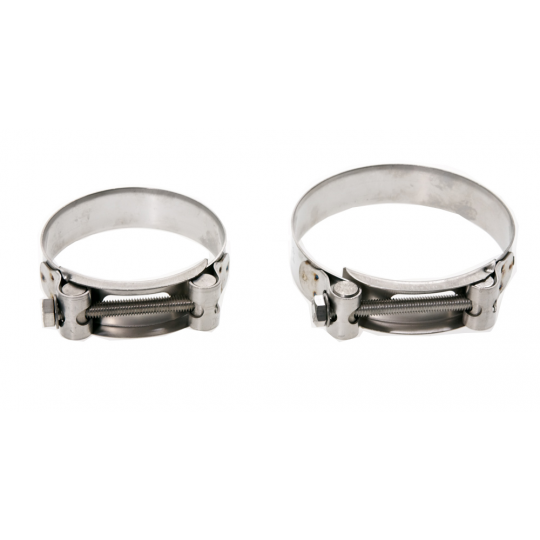

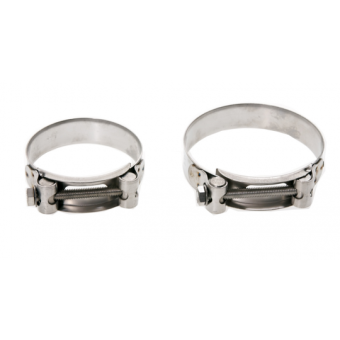

Damesa T-Bolt Hose Clamps AISI 304 Stainless Steel, 37–174 mm, M7 / M8 / M10 Bolt
The Damesa T-bolt hose clamps are designed for heavy-duty use on high-diameter hard hoses. Manufactured from AISI 304 stainless steel, this series is intended for demanding clamping applications where high strength and a secure fit are required.
The range includes multiple diameter options from 37–40 mm up to 162–174 mm. Depending on the selected size, the clamps are supplied with different band widths, band thicknesses, and bolt sizes to match the application requirements.
Key Features
- Type: T-bolt hose clamps
- Material: AISI 304 stainless steel
- Application: Heavy-duty use for clamping high-diameter hard hoses
- Diameter range: 37–174 mm
- Bolt sizes: M7, M8, M10
- Band widths: 22 mm, 27.5 mm, 31 mm
- Band thicknesses: 0.8 mm, 1.0 mm, 1.2 mm
Available Variants
Article Diameter Range (mm) For Hose Ø (mm) Band Width (mm) Band Thickness (mm) Bolt 2222789 37–40 22 0.8 M7 2222790 40–43 22 0.8 M7 2222792 43–47 35 22 0.8 M7 2222791 47–51 40 22 0.8 M7 2222793 51–55 45 22 0.8 M7 2222794 55–59 50 22 0.8 M7 2222795 59–63 22 0.8 M7 2222796 63–68 50 carburante 22 0.8 M7 2222797 68–73 60 27.5 1.0 M8 2222798 73–79 27.5 1.0 M8 2222799 79–85 70–75 27.5 1.0 M8 2222800 85–91 80 27.5 1.0 M8 2222801 91–97 27.5 1.0 M8 2222809 97–104 90 27.5 1.0 M8 2222802 104–112 100 27.5 1.0 M8 2222803 112–121 110 27.5 1.0 M8 2222804 121–130 110–120 27.5 1.0 M8 2222805 130–140 125–130 31 1.2 M10 2222806 150–162 140–150 31 1.2 M10 2222807 162–174 150 31 1.2 M10
Technical Summary
- For heavy-duty clamping applications
- Suitable for hard hoses and large diameters
- AISI 304 stainless steel construction
- Multiple diameter, band, and bolt configurations available
-
