ID
1317006
$ 326.91
1-2 weeks delivery time
-
+
The Level Switch with Electrodes operates without moving parts by detecting liquid levels through resistance between electrodes. It is designed for conducting liquids but not suitable for foaming liquids, with an adjustable level range from 2 cm to about 30 cm, operating at 230 V, and includes a 5 metre low voltage cable for electrodes.
- Description
- Ask a Question
-

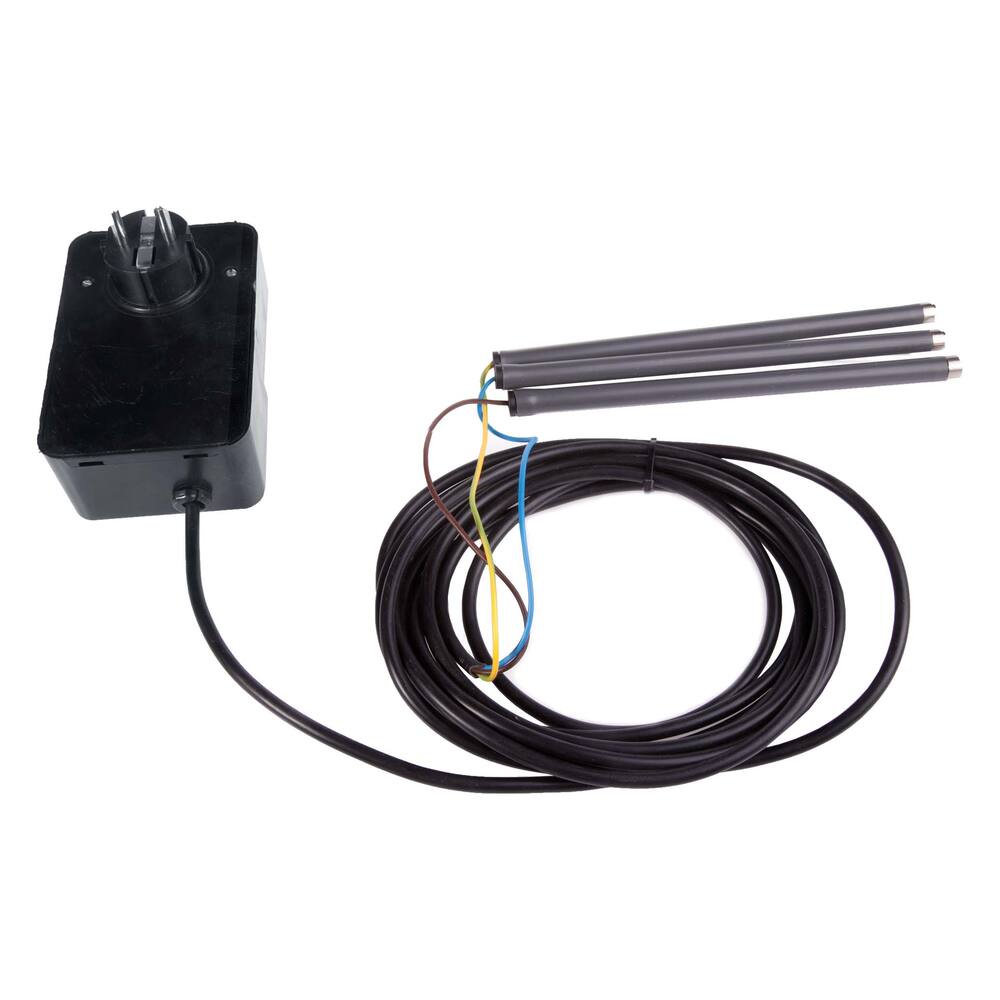

Level Switch With Electrodes 230V
This level controller operates without moving parts, using the resistance between electrodes to detect liquid levels. It is designed for conducting liquids but is not suitable for foaming liquids, which may cause delayed or no response.
- Adjustable level range: from 2 cm up to approximately 30 cm
- Minimum level difference: about 1 cm
- Voltage: 230 V, 50 Hz
- Control voltage: 15 V AC
- Electrodes voltage: 5 V
- Suitable for maximum 5 A, 1 hp / 0.75 kW
- Cable length: 5.0 metre low voltage cable for electrodes
- Maximum temperature: 40°C
- Product code: 89.81.620
-
