Guidi Brass Bushing M/F BSPP Pipe Fitting (Male/Female Thread)

ID 1366506

$ 2.07

1-2 weeks delivery time

Size, mm:

1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"

Item:

3/8"
1/4"
1/2"
3/4"
1"
1/8"
1 1/4"
1 1/2"
2"
2 1/2"
3"

The Guidi 0241 is a brass reducing bushing with male and female BSPP threads, designed to connect pipes of different diameters in marine systems. Available in a wide range of size combinations from 1/4" to 4", it ensures secure connections and corrosion resistance for onboard installations.

Description
Ask a Question

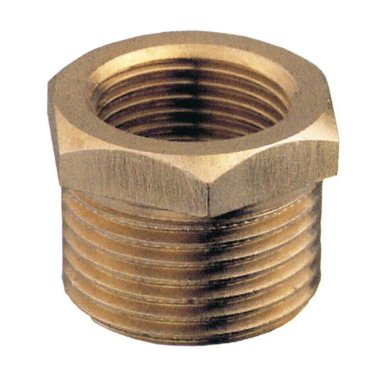

Guidi 0241 – Brass Bushing M/F BSPP Pipe Fitting (Male/Female Thread)

The Guidi 0241 brass bushing is designed for marine piping systems where a reduction between different thread sizes is required. Manufactured from high-quality yellow brass, it ensures durability and reliable performance in marine environments.

This fitting features a male thread on the outside and a female thread on the inside, allowing easy adaptation between different pipe diameters while maintaining a secure and leak-resistant connection.

Key Features

Type: Reducing bushing
Connection: Male / Female thread
Thread standard: BSPP (ISO 228 / BS 21)
Material: Brass
Wide range of size combinations

Available Size Combinations

Size (G)	Size (G1)	Product Code
1/4"	1/8"	0241.100201
3/8"	1/4"	0241.100202
3/8"	1/8"	0241.100203
1/2"	3/8"	0241.100205
1/2"	1/4"	0241.100206
1/2"	1/8"	0241.100207
3/4"	1/2"	0241.100208
3/4"	3/8"	0241.100209
3/4"	1/4"	0241.100210
1"	3/4"	0241.100211
1"	1/2"	0241.100212
1"	3/8"	0241.100213
1 1/4"	1"	0241.100214
1 1/4"	3/4"	0241.100215
1 1/4"	1/2"	0241.100216
1 1/2"	1 1/4"	0241.100217
1 1/2"	1"	0241.100218
1 1/2"	3/4"	0241.100219
2"	1 1/2"	0241.100220
2"	1 1/4"	0241.100221
2"	1"	0241.100223
2 1/2"	2"	0241.100226
3"	2"	0241.100227
4"	2 1/2"	0241.100233
4"	3"	0241.100234
4"	1 1/2"	0241.100240
4"	1"	0241.100241
4"	1/2"	0241.100251

Applications

Marine water systems
Cooling systems
Fuel systems
General onboard plumbing
