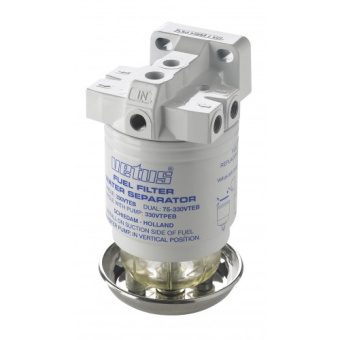

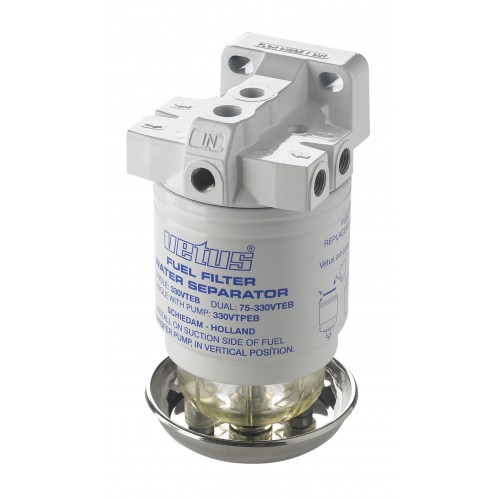

The "Spin-on" Vetus fuel filters utilize an exclusive filtration system that separates water from the fuel before it reaches the filter element. Water, being denser, is retained below, while the fuel ascends and passes through a filter element that captures any remaining water and dirt particles. This innovative filtration approach not only enhances the effective filtering surface but also improves filtration quality and prolongs the service life of the filter element.
- Description
- Ask a Question
-
"Spin-on" filters are designed to meet the stringent requirements of CE standards (ISO 7840 and ISO 10088) and ABYC standards for installation in engine rooms. These standards include withstanding a 2.5-minute fire resistance test, a challenge that Vetus filters easily surpass, even with a transparent lower housing that facilitates the monitoring of accumulated dirt and water levels.
Key Features:
- Compliance with CE and ABYC requirements for reliable performance.
- Applicability for a wide range of diesel fuel grades.
- Utilization of an exclusive proprietary filtering system.
- Enhanced filter surface and filtration efficiency, up to 5 times better than conventional filters.
- Transparent cover for effortless inspection of contamination levels.
- No need for specialized tools during replacement.
- Inclusion of all necessary connection fittings for convenient installation.
- Replacement of both the filter element and settling tank together to prevent splattering.
- Possibility to replace individual filters in assemblies while the engine is running.
- All connections are equipped with seals, eliminating the need for additional sealing.
- Manual Pump Filters are also available for simplified pumping of the Spin-on fuel system, identified by the letter "P" in the product code.
- Includes a connection kit for 10mm hose and 3 plugs for added convenience.
Vetus VTEB Ordinary Filter Specification:
SKU
330VTEB/330VTEPB 340VTEB/340VTEPB 350VTEB/350VTEPB Maximum Performance
190 l/h (42 gal/h)
380 l/h (84 gal/h)
460L/h (102 gal/h)
Type
Ordinary with pump
Ordinary with pump
Ordinary with pump
Connection
M16 x 1.5 M16 x 1.5 M16 x 1.5 Dimensions
205x120x120 mm 265x120x120 mm 325x120x120 mm Weight
1,30 kg 1,45 kg 1,60 kg Plug-in 10 μm (standard)
VT33EB VT34EB VT35EB Plug-in 30 μm (option)
VT33ER VT34ER VT35ER Replacement Rate
At least annually
At least annually
At least annually
Certificates
CE i ABYC CE i ABYC CE i ABYC -
