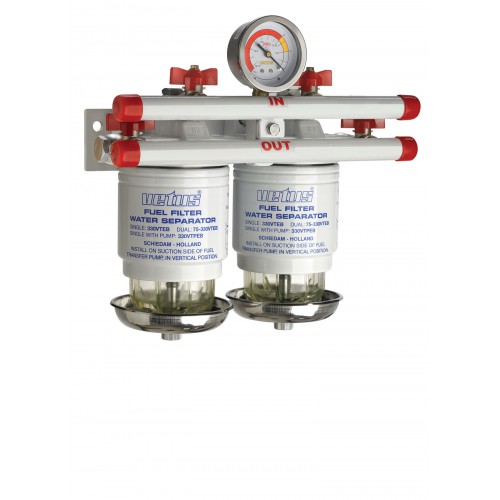

The "Spin-on" Vetus fuel filters are built on a proprietary filtration system that effectively separates water from the fuel before it enters the filter element. Water, being heavier, settles below, while the fuel rises and passes through a filter element that captures remaining water and dirt particles. This filtration design not only increases the effective filter surface but also enhances filtration quality and extends the filter element's lifespan.
"Spin-on" filters meet the stringent requirements of CE standards (ISO 7840 and ISO 10088) and ABYC standards for installation in engine rooms. One of these requirements is the ability to withstand a 2.5-minute fire resistance test. Vetus filters surpass this requirement, even with a transparent lower housing that allows for easy monitoring of accumulated dirt and water levels.
Key Features:
- Compliance with CE and ABYC requirements for reliable performance.
- Applicable for a wide range of diesel grades.
- Utilizes a proprietary filtering system.
- Offers up to 5 times better filter surface and filtration efficiency compared to conventional filters.
- Transparent cover for easy visual inspection of contamination levels.
- No specialized tools needed for replacement.
- All connection fittings are included for convenient installation.
- Filter element and settling tank are replaced together to prevent splattering.
- Individual filters in assemblies can be replaced while the engine is running.
- All connections feature seals, eliminating the need for additional sealing.
- Manual Pump Filters available for simplified pumping of the Spin-on fuel system, identified by the letter "P" in the product code.
- Includes a connection kit for 10mm hose and 3 plugs.
Vetus VTEB Ordinary Filter Specification:
SKU
75330VTEB 75340VTEB 75350VTEB Maximum performance per filter
190 l/h (42 gal/h)
380 l/h (84 gal/h)
460L/h (102 gal/h)
Parallel 2-Filter Performance> 380 l/h (84 gal/h) br> 760 l/h (168 gal/h) br> 920 l/h (204 gal/h)
Type
Dual
Dual
Dual
Connection
R 1/2 R 1/2 R 1/2 Dimensions
305x310x167 mm 365x310x167 mm 425x310x167 mm Bec
4,70 kg 5,00 kg 5,30 kg Plug-in 10 μm (standard)
2xVT33EB 2xVT34EB 2xVT35EB Plug-in 30 μm (option)
2xVT33ER 2xVT34ER 2xVT35ER Replacement Rate
By pressure gauge indication, but at least once a year
By pressure gauge indication, but at least once a year
By pressure gauge indication, but at least once a year
Certificates
CE i ABYC CE i ABYC CE i ABYC -
