ID
1361000
$ 454.09
1-2 weeks delivery time
Size, mm:
- 40
- 45
- 51
- 57
- 63
- 76
- 89
- 100
- 127
Item:
- In=0°, Out=45°
- In=0°, Out=0°
- In=0°, Out=0° (4L)
- In=0°, Out=0° (6L)
- In=0°, Out=45° (6L)
- In=0°, Out=45° (4L)
- In=90°, Out=45° (6L)
- In=90°, Out=45° (8L)
- In=0°, Out=0° (17L)
- In=0°, Out=0° (24L)
- In=45°, Out=90°
The Allpa Stainless Steel Waterlock & Mufflers 316-L range includes units with hose connections from 40 mm to 127 mm, capacities from 4 L to 30 L, and multiple inlet and outlet angle configurations including 0°, 45° and 90°. Depending on the variant, dimensions range from 200 x 160 mm to 550 x 265 mm. This series is available for different installation layouts where hose diameter, internal volume, and inlet/outlet direction must match the exhaust system configuration.
- Description
- Ask a Question
-

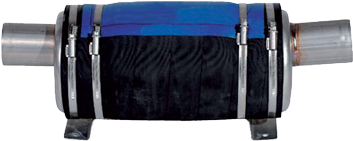

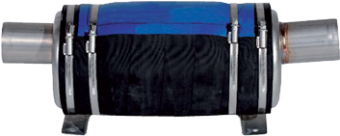

Allpa Stainless Steel Waterlock & Mufflers 316-L, 40–127 mm Hose Connection, 4–30 L
The Allpa Stainless Steel Waterlock & Mufflers 316-L series includes multiple variants for exhaust system installations requiring different hose diameters, chamber volumes, and inlet/outlet angle configurations. The range covers hose connections from 40 mm to 127 mm and capacities from 4 L to 30 L.
Depending on the selected model, the mufflers are available with straight or angled inlet and outlet connections, including 0°, 45°, and 90° layouts. Dimensions vary from 200 x 160 mm up to 550 x 265 mm, allowing selection according to the available installation space and required volume.
Key Features
- Series: Stainless Steel Waterlock & Mufflers 316-L
- Hose connection range: 40 mm to 127 mm
- Capacity range: 4 L to 30 L
- Available inlet angles: 0°, 45°, 90°
- Available outlet angles: 0°, 45°, 90°
- Dimensions range: 200 x 160 mm to 550 x 265 mm
Available Variants
Article Hose Connection (mm) Volume In Out Dimensions (L x Ø mm) 905241542 40 4 L 0° 0° 200 x 160 905241540 40 4 L 0° 45° 200 x 160 905241547 45 4 L 0° 0° 200 x 160 905241545 45 4 L 0° 45° 200 x 160 905241548 51 4 L 0° 0° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261699 51 4 L 0° 45° 200 x 160 905261698 51 6 L 0° 45° 300 x 160 905241549 51 6 L 0° 0° 300 x 160 905241555 57 6 L 0° 0° 300 x 160 905241557 57 6 L 0° 45° 300 x 160 905255473 63 6 L 0° 0° 300 x 160 905241563 63 6 L 0° 45° 300 x 160 905241550 76 6 L 90° 45° 300 x 160 905241552 76 8 L 0° 0° 400 x 160 905254547 76 8 L 0° 45° 400 x 160 905241551 76 8 L 90° 45° 400 x 160 905252928 89 12 L 0° 0° 360 x 210 905252927 89 15 L 0° 0° 450 x 210 905252930 89 15 L 0° 45° 450 x 210 905262975 100 17 L 0° 0° 500 x 215 905262977 100 17 L 0° 45° 500 x 215 905262979 100 24 L 0° 0° 500 x 245 905272977 127 30 L 45° 90° 550 x 265
Configuration Options
- Straight-through configuration: In 0° / Out 0°
- Angled outlet configuration: In 0° / Out 45°
- Angled inlet and outlet configuration: In 90° / Out 45°
- Large-size angled configuration: In 45° / Out 90°
-
