€ 2.654,65
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Voltage:
- 24V
- 48V
Electric power, W:
- 5000
Current (Amps):
- 70
- 120

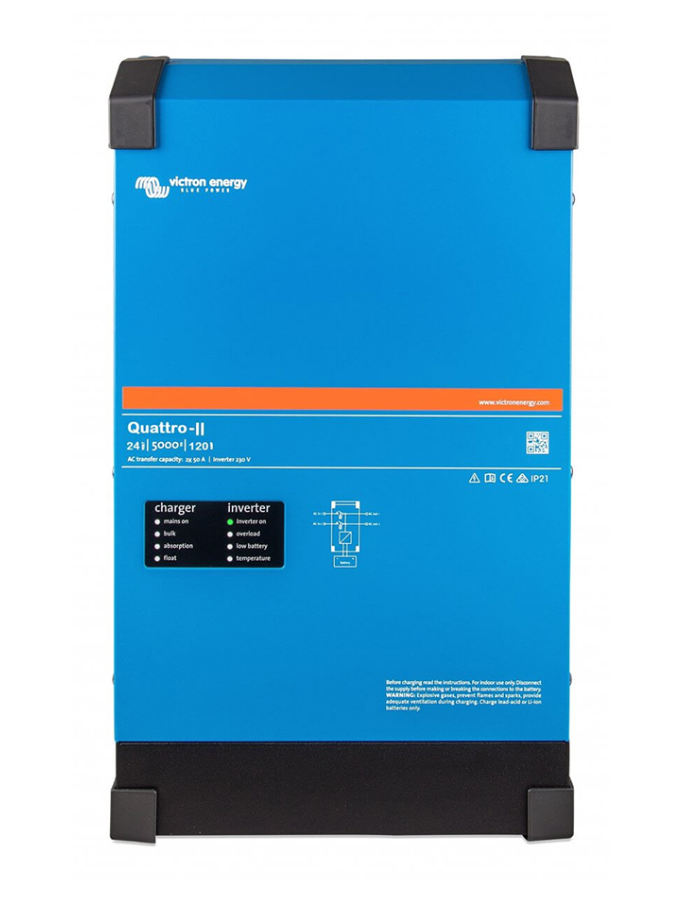

The Victron Energy Quattro-II 5000W Inverter/Charger is a powerful, multifunctional solution combining a true sine wave inverter and advanced battery charger in a single compact unit. Available in both 24V (120A charging) and 48V (70A charging) versions, the Quattro-II features dual AC inputs with automatic switching, no-break functionality, and Victron’s unique PowerAssist technology
- Description
- Ask a Question
-
Victron Energy Quattro-II 24/5000 & 48/5000 230V Inverter/Charger is a high-performance all-in-one inverter and charger system, ideal for marine, mobile, and off-grid applications. Supporting both 24V and 48V battery systems, it combines seamless power switching, intelligent charging, and hybrid functionality in a rugged and compact format.
Main Features
- True sine wave inverter with 5000VA continuous power
- Available in 24V/120A and 48V/70A battery charging models
- Dual AC inputs – automatically connects to active source (e.g., shore power and generator)
- Main output with no-break functionality (less than 20 ms switching time)
- Secondary output active only when AC input is present – ideal for non-critical loads
- PowerAssist – boosts shore or generator power with battery power
- Parallel and three-phase operation – connect up to 6 units in parallel
- Advanced system monitoring and configuration via Cerbo GX, Color Control GX, VE.Bus, or VictronConnect app
Technical Specifications
Model QUA242505010 QUA482504010 DC Input Voltage 24V (19–33 V range) 48V (38–66 V range) Continuous Output Power at 25°C 5000 VA / 4000 W Peak Power 9000 W Maximum AC Input Current 50 A Battery Charging Current 120 A 70 A Charge Voltage (Absorption/Float) 28.8 / 27.6 V 57.6 / 55.2 V Efficiency Up to 96% Weight 31 kg 29 kg Dimensions (H x W x D) 607 x 329 x 149 mm 565 x 320 x 148 mm Protection Class IP21
Smart Integration & Monitoring
- Compatible with Cerbo GX, Venus GX, Color Control GX
- Remote monitoring via Victron Remote Management (VRM) portal
- Supports VE.Bus, Bluetooth (with VE.Bus Smart Dongle), USB, and more
Certifications and Standards
- Safety: EN-IEC 60335-1 / 2-29, EN-IEC 62109-1 / 2
- EMC: EN 55014-1 / 2, EN-IEC 61000-3, IEC 61000-6 series
The Yacht Supply24 team recommends the Victron Quattro-II for demanding multi-source applications requiring high reliability, no-break transition, and scalable power delivery.
Documents
Victron Energy Quattro-II Inverter:Charger Size: 607,8 Kb -
