Victron Energy Inverter Compact 1200VA - 2000VA 12/24/48V

Victron Energy Inverter Compact 1200VA–2000VA | 12/24V

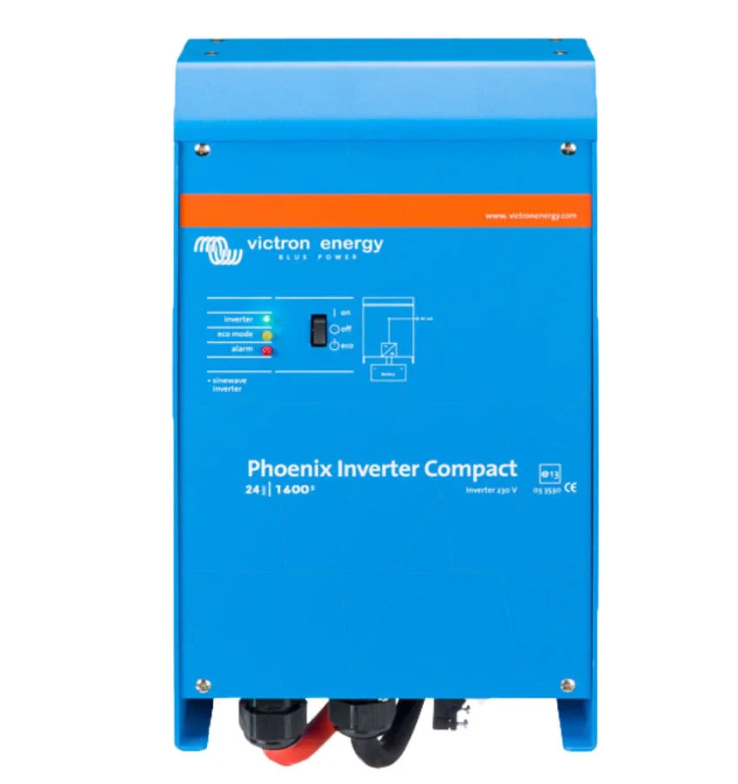

The Victron Energy Inverter Compact is a highly efficient and compact pure sine wave inverter, developed for demanding professional applications. With models available in 12V and 24V input configurations, and continuous power ratings from 1200VA to 2000VA, these inverters are ideal for marine, vehicle, and off-grid installations. Featuring SinusMax technology, they provide high start-up power for running demanding loads like compressors, tools, and electronics. The integrated VE.Bus interface enables full configurability, remote control, and support for parallel or three-phase systems.

Key Features:

• Pure Sine Wave Output: Safe for all AC appliances, including sensitive electronics.
• SinusMax Technology: High peak power capability to handle large motor loads with ease.
• VE.Bus Communication: Enables configuration, remote monitoring, and system expansion with Victron GX devices.
• Programmable Relay: Can be set for alarms, generator start/stop control, or other functions.
• Energy-Saving Modes: AES and Search Mode reduce idle power consumption in standby operation.
• Wide Operating Temperature Range: From -40°C to +65°C with active fan cooling.

Available Models and Specifications:

Additional Technical Information:

• Output Voltage: 230V ±2%
• Output Frequency: 50Hz (adjustable to 60Hz)
• Protection Class: IP21
• Enclosure: Aluminium, RAL 5012 blue
• Battery Connection: 1.5m cable with M8 terminals
• Dimensions (H × W × D): from 375 × 214 × 110 mm to 520 × 255 × 125 mm
• Weight: 10–12 kg depending on model

Certifications and Compliance:

• Safety: EN 60335-1
• EMC: EN 55014-1 / EN 55014-2

The Victron Energy Inverter Compact series offers an ideal combination of compact size, robust output power, and smart functionality. It’s the perfect choice for demanding applications in mobile and off-grid environments where high performance and reliability are essential.
