Victron Energy EasySolar Inverter/Chargers 12/24V 1600W

€ 1.279,08

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

Electric power, W:

1600

Current (Amps):

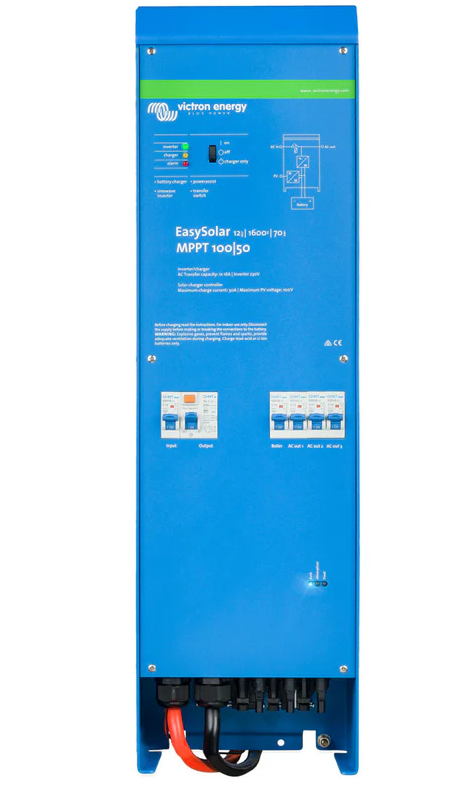

The Victron EasySolar 12/1600 and 24/1600 combines a pure sine wave inverter, a powerful battery charger, an MPPT solar charge controller (100/50), and AC distribution in a single enclosure. Designed for effortless installation with prewired components and minimal cabling, it's an all-in-one solution for boats, RVs, cabins, and off-grid systems with solar capability up to 700–1400 W.

Description
Ask a Question

Victron Energy EasySolar 12/1600/70-16 MPPT 100/50 (CEP121621000) and EasySolar 24/1600/40-16 MPPT 100/50 (CEP241621010) are fully integrated solar energy systems that include:

A pure sine wave inverter (1600 VA / 1300 W)
A high-performance battery charger (70 A @ 12 V or 40 A @ 24 V)
An integrated MPPT solar charge controller (100/50)
A prewired AC distribution panel with breakers and RCD

This all-in-one system allows fast installation and eliminates the need for separate inverters, chargers, MPPT controllers, and distribution panels.

Main Features:

MPPT 100/50 Solar Charge Controller – Up to 700 W (12 V) or 1400 W (24 V) of solar input
MultiPlus Compact inverter/charger – Reliable AC output with adaptive battery charging
AC Distribution – Four AC outputs (2 × 10 A, 2 × 16 A) and RCD (30 mA/16 A)
Dedicated AC output – One 16 A output switches on only with active AC input (e.g., shore/generator)
PowerAssist – Prevents overload of limited AC sources by supplementing with inverter power
Fast installation – Battery cables (1.5 m) and MC4 PV connectors pre-installed

Technical Specifications:

Model	EasySolar 12/1600/70-16 or 24/1600/40-16
SKUs	CEP121621000 (12 V), CEP241621010 (24 V)
Battery Voltage	12 V or 24 V
Inverter Output	1600 VA / 1300 W (continuous), 3000 W peak
AC Transfer Switch	16 A high-speed
Charger Output	70 A (12 V), 40 A (24 V) + 4 A starter battery charge
MPPT Controller	BlueSolar MPPT 100/50
Max PV Input Power	700 W (12 V), 1400 W (24 V)
Max PV Voltage	100 V
AC Distribution	4 protected outputs, 1 special 16 A AC output
Max Efficiency	Inverter: 92–94%, MPPT: 98%
Zero Load Power	8–10 W (Search Mode: 2–3 W)
Battery Temperature Sensor	Included
Enclosure	Aluminum, RAL 5012 Blue, IP21
Cooling	Fan-assisted
Dimensions (H × W × D)	745 × 214 × 110 mm
Weight	15 kg
