The Czone 80-911-0122-00 Control 1 Interface is a compact digital control and monitoring module that combines multiple inputs and outputs into one robust unit, reducing wiring and installation time. It supports high and low output channels, analog inputs, PWM dimming, bilge pump monitoring, and USB updates, with IPx5 protection, Deutsch connectors, and compliance with CE, ABYC, and NMEA standards.
- Description
- Ask a Question
-

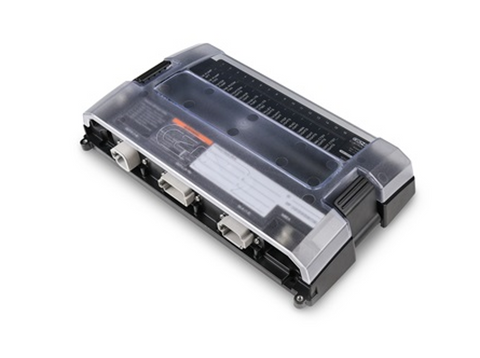

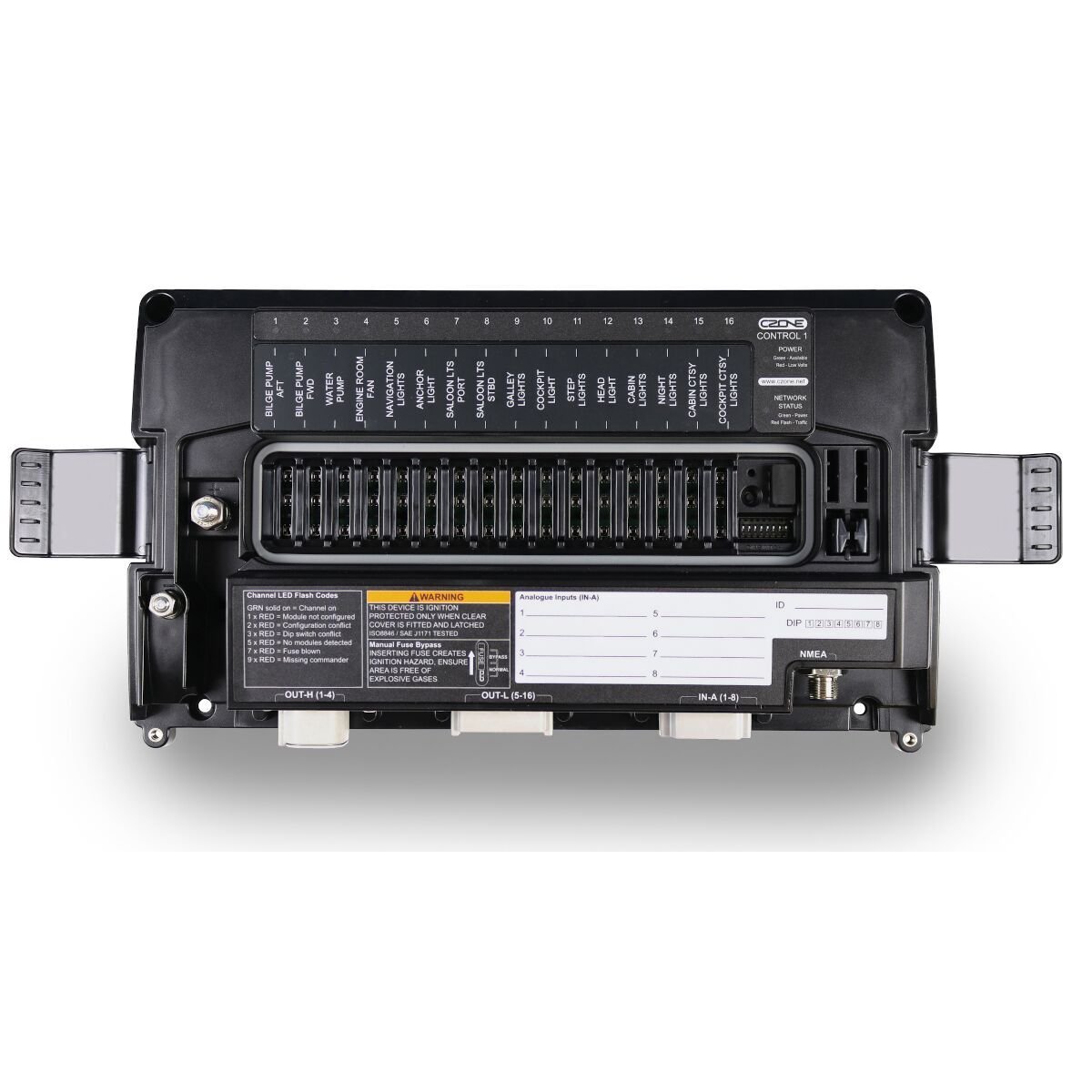

Czone 80-911-0122-00 - Control 1 Interface
The CZone Control 1 Interface is a compact and cost‑effective digital control and monitoring solution that combines multiple input and output devices into a single robust module. By reducing interconnections between separate modules, it significantly minimizes installation time, wiring complexity, and overall footprint, making it ideal for smaller vessels and recreational vehicles.
Engineered as a streamlined alternative to the fully featured Combination Output Interface (COI), the Control 1 Interface retains essential CZone functionality while delivering improved cost‑per‑channel value. It features the same rugged construction, IPx5 water ingress protection, and full mechanical fuse and bypass on all circuits. Industry‑standard Deutsch connectors ensure reliable, plug‑and‑play installation in demanding marine and mobile environments.
Designed to expand CZone’s digital switching portfolio, the Control 1 Interface focuses on essential features required for compact systems. This approach increases affordability while preserving the performance, safety, and flexibility expected from CZone technology.
Key Features
- Complete CZone control and monitoring system in a single enclosure.
- Modular architecture suitable for a wide range of vessels and RVs.
- Compatible with marine multifunction displays and black‑box chartplotters/fishfinders.
- Advanced CZone core feature set at a competitive price point.
- ABYC‑compliant ATC fusing with mechanical bypass for redundancy.
- PWM (pulse‑width modulation) light dimming with smooth start capability.
- Monitoring of tank levels, battery voltage, temperature, and pressure using industry‑standard sensors.
- Bilge pump run detection enabling control and monitoring via a single wire.
- Status LEDs for all outputs, DC supply, and NMEA 2000 network.
- Additional voltage monitoring on main DC connection and NMEA 2000.
- Built‑in load shedding to preserve battery life.
- USB port for firmware and configuration updates without a PC or adapters.
Applications
With the growing adoption of digital switching in smaller vessels and recreational vehicles, the Control 1 Interface enables OEMs to offer advanced digital control and monitoring at an accessible price point. It delivers enhanced functionality, value, and product differentiation to end users.
General Specifications

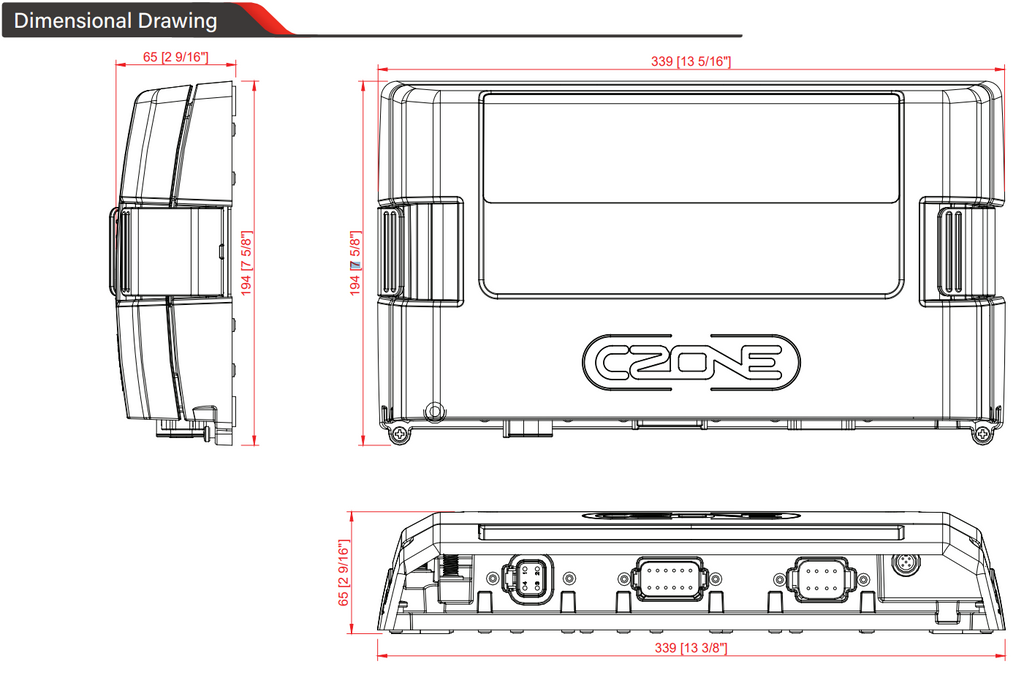

High Output Channels 4 × 25 A Low Output Channels 12 × 10 A (dimmable) Analogue Inputs 8 inputs (positive or negative switching, 0–32 V), 0–1000 Ohm resistance, 4–20 mA current Communication Protocol NMEA 2000 NMEA 2000 PGN Output Fluid level, pressure, temperature, battery voltage Circuit Current Monitoring No Circuit Protection ATC fuse with fuse‑tripped and fuse‑in‑bypass alarms Additional Monitoring 1 × voltage sense on main positive stud Circuit Bypass Mechanical protection / bypass on all output channels Maximum Continuous Current 150 A at 40 °C / 104 °F (derating above 40 °C / 104 °F) Connectors Deutsch Power Supply M8 (5/16”) stud positive, M6 (1/4”) stud negative Supply Voltage 9–32 V (with power available LED) Bilge Pump Circuits 4 high‑current channels with integrated manual control and pump‑running detection Protection Degree IPx5 (mounted at 0° ± 90°) Dimensions (H × W × D) 339 × 194 × 65 mm / 13.3 × 7.6 × 2.6 inch Weight 1.9 kg / 4.2 lb Compliance CE, ABYC, NMEA, ISO 8846 / SAE J1171 Ignition Protected
Technical Specifications
Power Consumption Operating (all channels on): 100 mA at 13.2 V Operating (all channels off): 75 mA at 13.2 V
