ID
1297804
$ 4,813.13
1-2 weeks delivery time
-
+
The Cyclops Marine Smarttune² 1" sensor is engineered for vessels needing high-capacity load monitoring. Featuring a 12000 kg calibrated load and 22000 kg breaking load, it runs on an internal LiPo battery with wireless charging and around 120 days of life per charge. The waterproof (IP68) sensor provides continuous, accurate data through the Smartfittings app or compatible devices, ensuring precise rigging performance with ±1% accuracy. Item number: CMTS10.
- Description
- Ask a Question
-

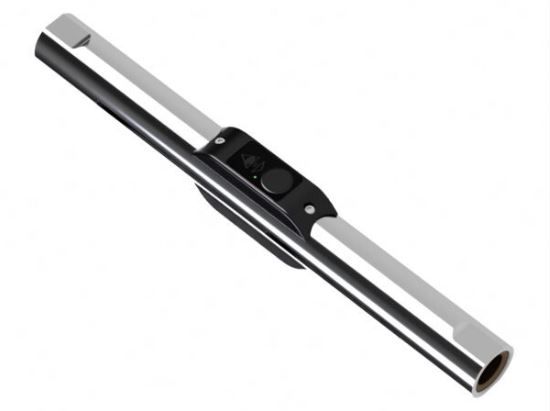

Cyclops Marine Smarttune² 1"
The Smarttune² 1" sensor is tailored for vessels demanding superior load monitoring capabilities. It combines a LiPo-powered system with wireless connectivity for continuous and accurate data transmission.
- Thread size: 1"
- Calibrated load: 12000 kg
- Breaking load: 22000 kg
- Sensor dimensions: 68 x 400 x 40 mm
- Sensor weight: 1900 g
- Power supply: LiPo batteries

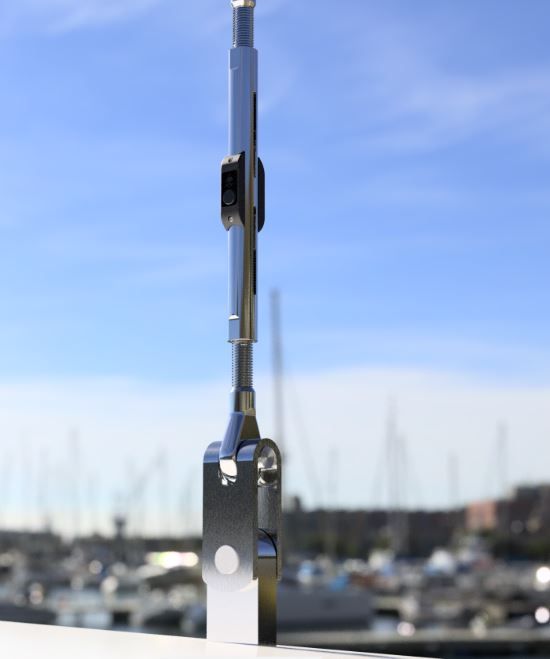

- Easily replaces existing tensioner
- Waterproof: IP68
- Internal LiPo battery power
- Wireless charging
- Battery life: approx. 120 days
- Adjustable data rate via smartfittings app
- Wireless connection to phone via smartfittings app
- Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX

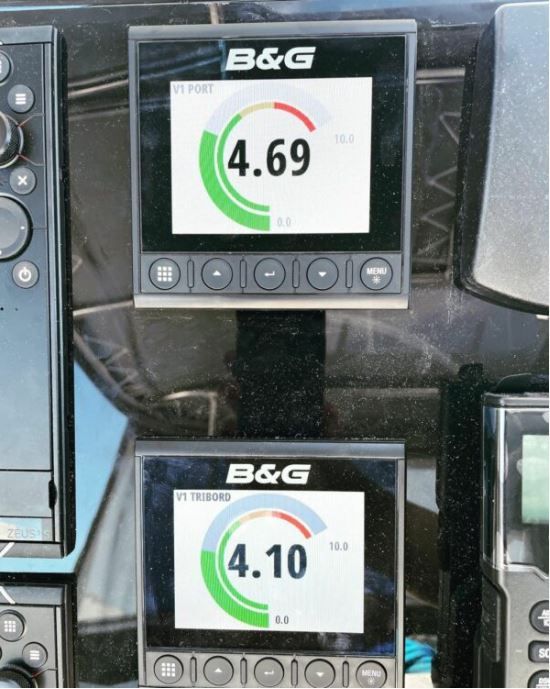

- Wireless connection to boat displays via Cyclops gateway
- Data log for analysis stored in smartfittings app and Cyclops gateway
- Lightweight and low windage
- Accuracy: +/- 1% of maximum workload
- Designed for rigging with relevant workload
- Item number: CMTS10
-
