The Trem L0612186 is a 12-position modular fuse box with a common negative bus bar and screw contacts. Each position has an LED indicator, it supports standard blade fuses at 12/24V with a 100A maximum cumulative load and 20A per fuse, and includes an adhesive label kit. Compatible with base modules 1 and 2, it measures 86 × 57 × 41 mm.
- Description
- Ask a Question
-

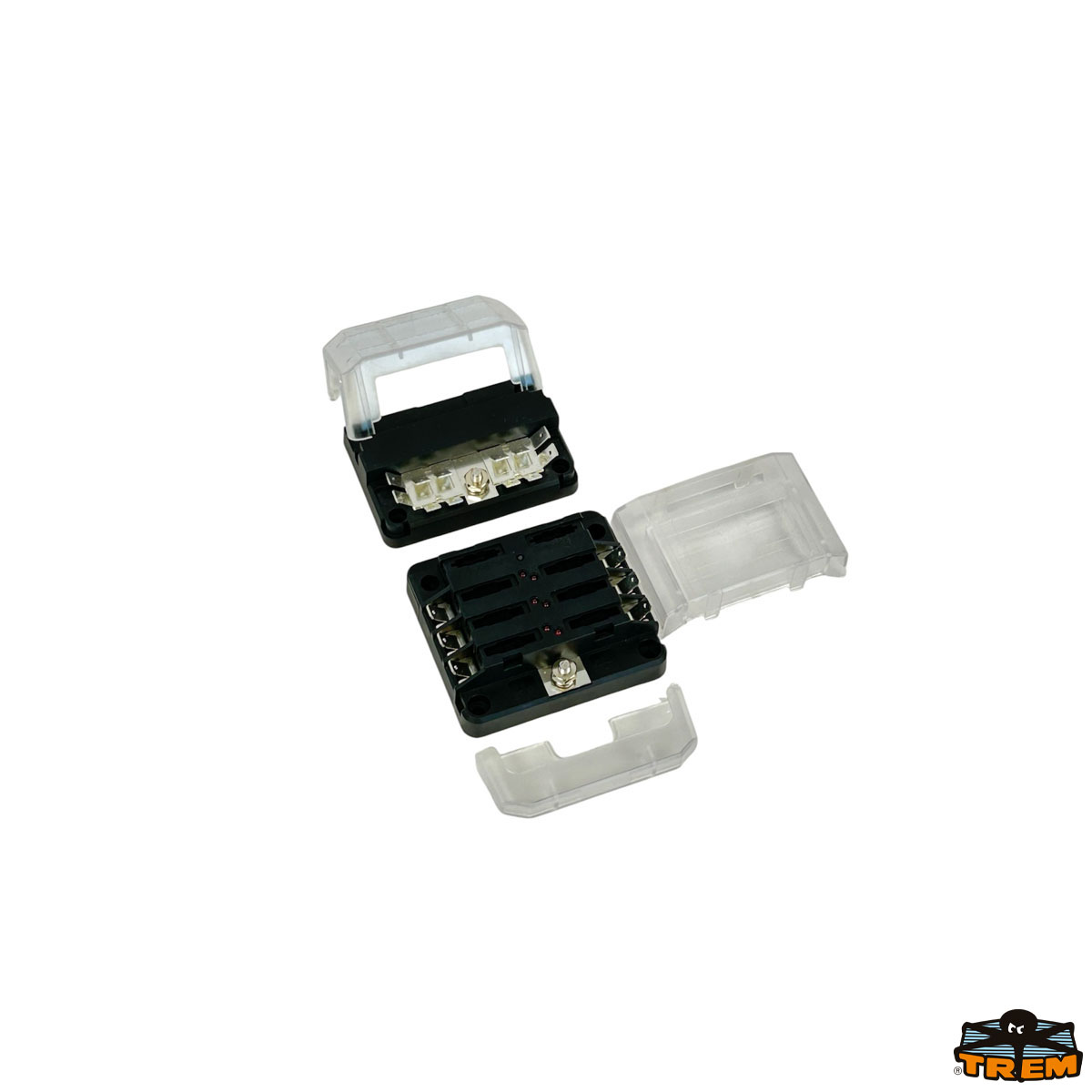

Trem L0612186 - Modular Fuse Box With 12 Positions Common Negative Screw Fittings

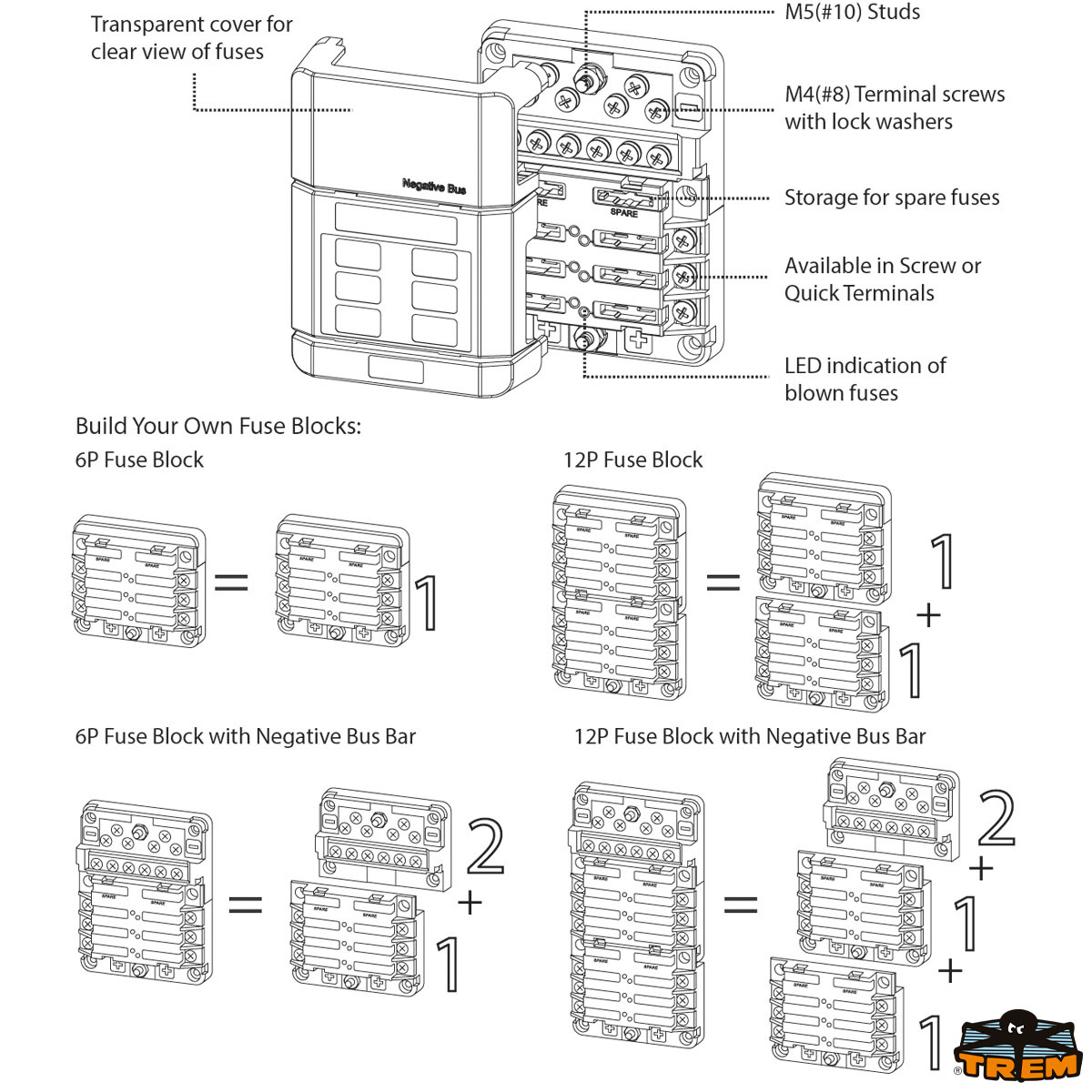

- A modular 12-position fuse box designed for standard blade fuses and flexible multi-module configurations.
- Accepts standard blade fuses (ATP – ATO – ATC)
- Control LEDs on each fuse
- Voltage: 12/24 V
- Maximum cumulative load: 100 A
- Maximum load per individual fuse: 20 A
- Includes adhesive label kit with multiple markings
- Compatible with base modules 1 and 2 for multiple assembly combinations
- 12-position negative bus bar
- Contact type: screw
- Dimensions: 86x57x41 mm
- Maximum voltage: 32 V
- Brand: Electra
- EAN: 8024827807750
-
