ID
1305804
$ 226.53
1-2 weeks delivery time
-
+
The Trem K0912250 is a durable solenoid switch with hermetically sealed contacts, remotely activated via an ON–OFF switch. It features an integrated coil control to reduce heat and power draw, operates at 12–24V with a continuous rating of 250A and a 30-second rating of 1000A, and should be installed in a dry location. The unit has M8 terminals, a 2-wire isolated coil, a plastic case, and measures 80.52 × 66.80 × 72.64 mm.
- Description
- Ask a Question
-

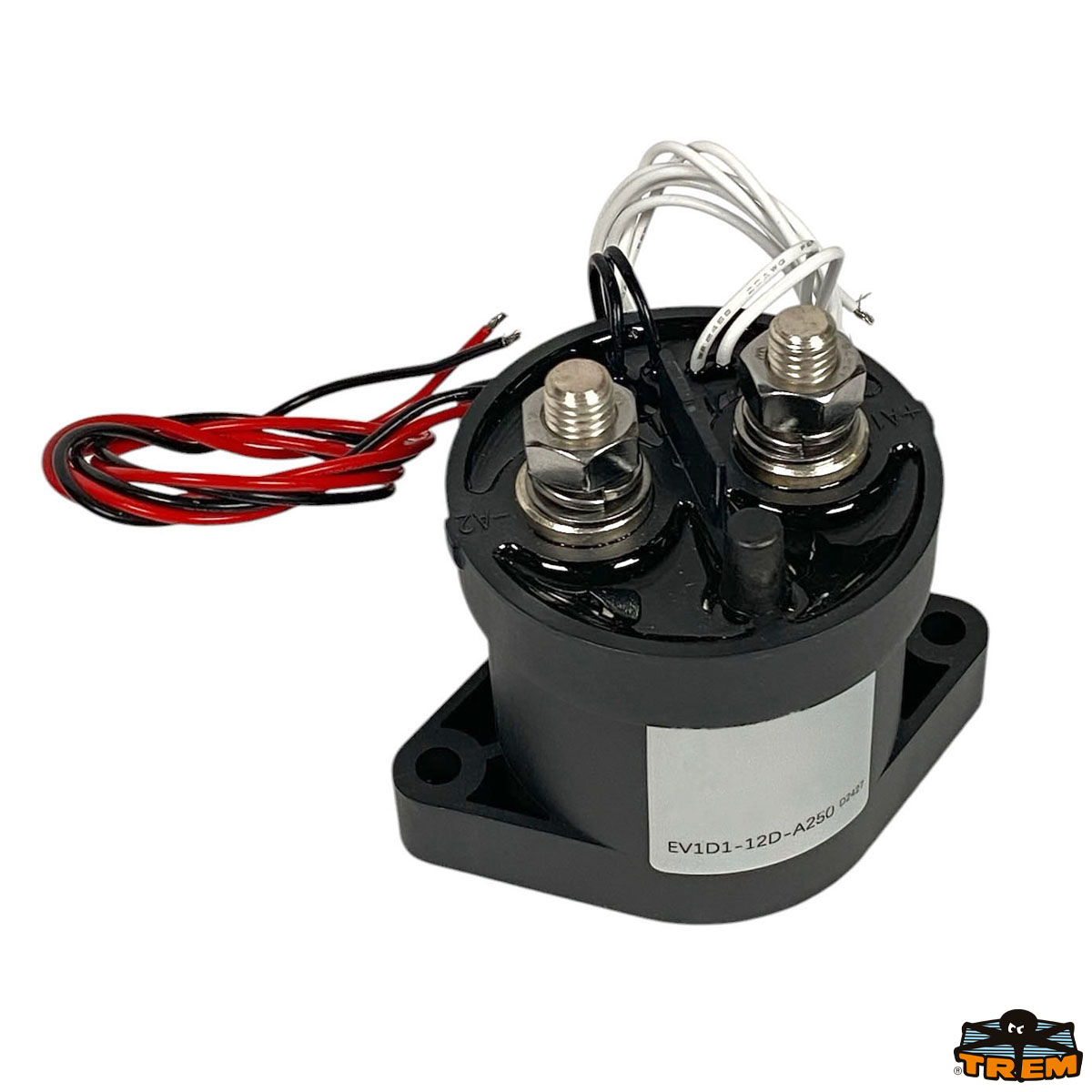

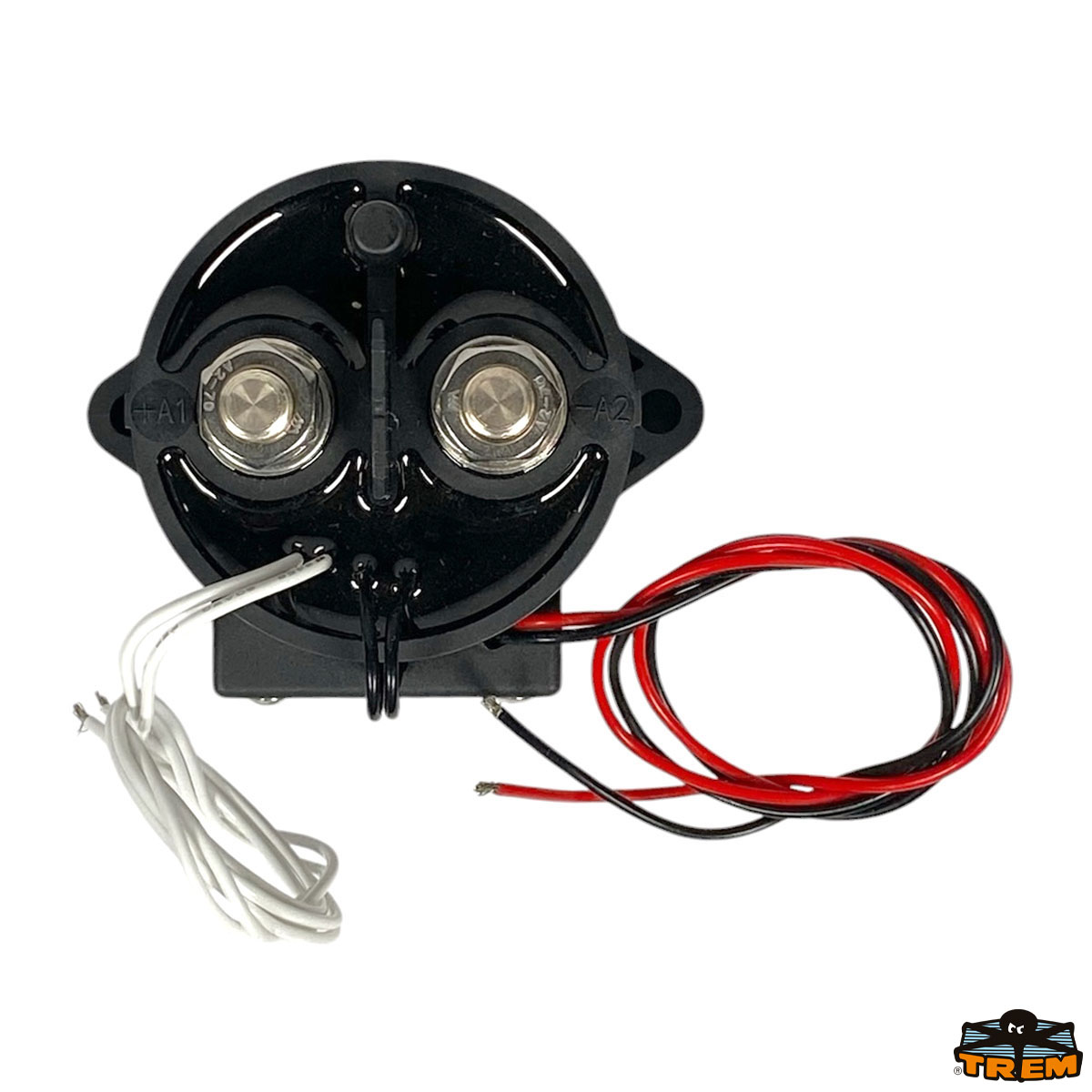

Trem K0912250 - Solenoid Switch 12–24V Continuous Power 250A
- Durable solenoid switch with hermetically sealed contacts, remotely activated through an ON–OFF switch.
- Integrated coil control helps minimize heat and power draw.
- Install in a dry location for best performance.
- Voltage CC: 12–24V
- Continuous rating: 250A
- 30 sec rating: 1000A
- Size mm: 80,52 × 66,80 × 72,64
- Coil control: 2 wires
- Terminal size: M8
- Coil: isolated
- Case material: Plastic
- Brand: Electra
- EAN: 8024827807835
-
