The Vetus RUDDW40 Rudder Position Gauge in white is a large 114 mm marine indicator designed to provide precise rudder angle monitoring in 12/24 V DC systems. Suitable for a 100 mm dashboard cut-out, it features a translucent dial, dimmable yellow or red LED illumination, and a double-glazed front that reduces condensation. The gauge comes with black and chrome bezels and requires the separate RUDDSHD rudder position sensor for accurate functionality.
- Description
- Ask a Question
-

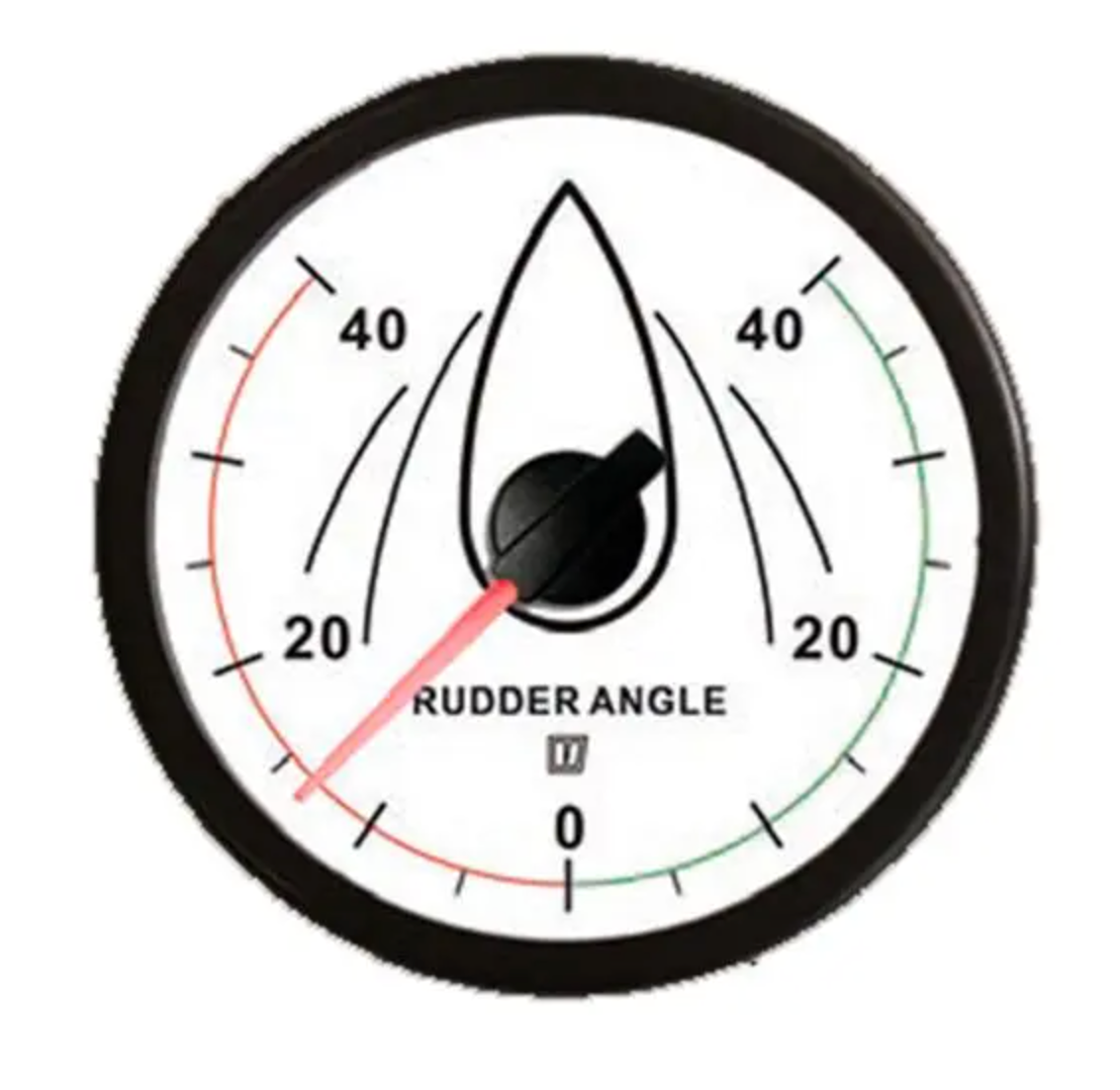

Vetus RUDDW40 White Rudder Position Gauge 12/24V – Marine Rudder Indicator Ø114 mm
The Vetus RUDDW40 white rudder position gauge is a large-format 114 mm marine instrument designed for precise, real-time monitoring of rudder angle. Its oversized dial and intuitive graphic layout provide excellent long-range readability, making it an essential component for steering control during close-quarters maneuvering. With a 100 mm dashboard cut-out, this updated Vetus gauge series combines improved accuracy, enhanced construction quality, and modern illumination technology.
Key Features
- Large 114 mm dial for maximum readability at the helm
- White dial with clear and intuitive rudder angle markings
- Compatible with 12 V and 24 V DC electrical systems
- Translucent dial illuminated from below by dimmable LEDs
- Selectable yellow or red LED backlighting
- Double-glazed lens to reduce internal condensation
- Improved accuracy and redesigned high-quality bezels
- Supplied with solid black and premium chrome bezels
- Standardised Vetus dimensions for easy gauge replacement
- Available face colours in the range: black, cream, white
- Requires RUDDSHD rudder position sensor (sold separately)
Technical Specifications
Parameter Value Model Vetus RUDDW40 Purpose Rudder indicator Dial Colour White Voltage 12/24 V DC Overall Diameter 114 mm Cut-out Diameter 100 mm Visible Dial Size 100 mm Backlighting Dimmable LED (yellow or red) Dial Type Translucent, illuminated from below Front Lens Double glazed Included Bezels Black and premium chrome Compatibility Backwards compatible with Vetus gauge systems Available Face Colours (range) Black, cream, white Required Sensor RUDDSHD (sold separately) -
