€ 104,16
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Pressure Sender 0-25 Bar - M14 is ideal for high-pressure applications, with a measuring range of 0 to 25 Bar and a maximum pressure of 50 Bar for short bursts. It supports temperatures from -25 °C to +100 °C and operates on 6-24 V DC, featuring a dual-pole insulated return signal, with optional warning contact capabilities.
- Description
- Ask a Question
-

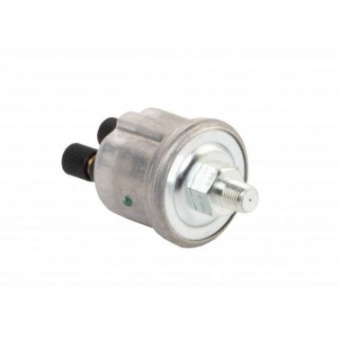

Pressure Sender 0-25 Bar - M14
The Pressure Sender 0-25 Bar - M14 is ideal for applications requiring higher pressure measurement. Its features are:
- Pressure measuring range: 0 - 25 Bar, 0 - 362 PSI, 0 - 2500 KPa
- Maximum pressure: 50 Bar for 2 seconds
- Thread: M14 x 1.5

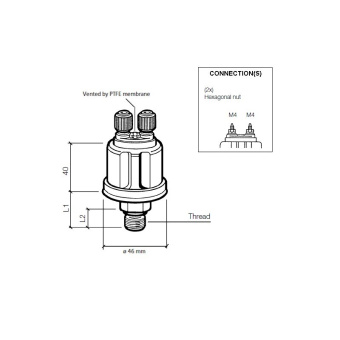

- Length of thread + nut (L1): 20.5 mm
- Thread length (L2): 12 mm
- Torque: 60 Nm
- Operating temperature: -25 °C to +100 °C
- Pressure medium: Oil, Fuel, Air
- Electrical features:
- Operating voltage: 6 - 24 V DC
- Resistor range: 10 - 184 Ohm
- Pressure sensor signal: Dual-Pole insulated return
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
- Pressure sender connector: M4 Hexagonal nut
- Brand: VDO
- Product Number: 360-081-038-001C
-
