Osculati Automatic Electronic Switch for Bilge Pumps 12/24V - 16.610.01

ID 1245214

$ 50

1-2 weeks delivery time

- +

Add to cart

Osculati 16.610.01 Automatic Electronic Switch is a universal bilge pump controller designed for all submersible bilge pumps operating on 12/24V systems with a maximum current draw of 20A at 12V and 10A at 24V. The switch activates at a 41 mm water level and turns off at 9.5 mm, helping maintain low bilge water levels efficiently. Featuring a 3-second delay system to prevent false starts, the compact 92x22x63 mm unit supports both horizontal and vertical installation for flexible mounting in marine bilge compartments.

Description
Ask a Question

Osculati 16.610.01 - Automatic Electronic Bilge Pump Switch 12/24V, 20A – Universal Horizontal/Vertical Mount Sensor

The Osculati 16.610.01 automatic electronic bilge pump switch is designed for automatic control of submersible bilge pumps in 12V and 24V marine electrical systems. Compatible with all submersible pumps operating within the specified current limits, the switch provides reliable automatic bilge water management with flexible installation options.

The unit automatically activates connected bilge pumps at a water level of 41 mm and switches them off at 9.5 mm, minimizing residual water inside the bilge. An integrated 3-second delay system helps prevent false starts caused by water movement or vibrations.

Universal automatic electronic bilge pump switch
Compatible with all submersible bilge pumps
Suitable for 12V and 24V systems
Automatic activation level: 41 mm
Automatic shut-off level: 9.5 mm
Integrated 3-second anti-false-start delay
Supports horizontal and vertical installation
Compact marine-grade construction

Specification	Details
Brand	Osculati
Article Number	16.610.01
Product Type	Automatic Electronic Switch for Bilge Pumps
Compatibility	All submersible bilge pumps
Operating Voltage	12/24V
Maximum Current	20A (12V) / 10A (24V)
Activation Level	41 mm
Shut-Off Level	9.5 mm
Installation	Horizontal or vertical

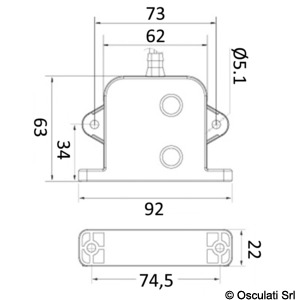

Dimensions	92 x 22 x 63 mm

Its compact dimensions and flexible mounting orientation make the Osculati 16.610.01 suitable for installation in confined bilge compartments while ensuring dependable automatic bilge pump operation.
