Name: Viadana Recess-Fit Blocks for Wire Cables with Aluminium Sheave
SKU: Osculati-55.241.04

Viadana Recess-Fit Blocks for Wire Cables with Aluminium Sheave

ID 1391441

$ 33.47

1-2 weeks delivery time

Diameter, mm:

Item:

22 mm Sheave
28 mm Sheave
34 mm Sheave
40 mm Sheave

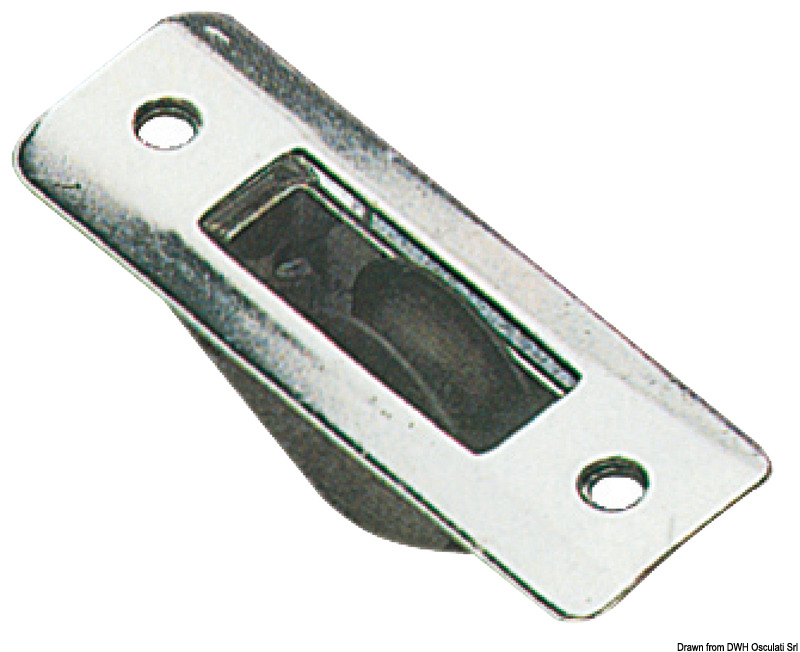

Viadana Recess-Fit Blocks for Wire Cables are stainless steel blocks designed for recessed installation on a mast or deck and fitted with aluminium sheaves. The range includes single-sheave versions for wire cables up to 3-5 mm, with sheave diameters from 22 to 40 mm and breaking loads from 500 to 700 kg.

Description
Ask a Question

Viadana Recess-Fit Blocks for Wire Cables with Aluminium Sheave - Osculati 55.241.03 / 55.241.04 / 55.241.06 / 55.240.05

Viadana recess-fit blocks designed for use with wire cables. The blocks are made of stainless steel for recessed installation on a mast or deck and are fitted with aluminium sheaves. All versions use a single sheave and differ in sheave diameter, maximum cable diameter and breaking load.

Product Features
- Brand: Viadana
- Product type: Recess-fit block for wire cables
- Material: Stainless steel
- Mounting: Recess-fit on mast or deck
- Sheave material: Aluminium
- Number of sheaves: 1
- Application: Wire cables
Available Variants

Osculati Code Sheave Diameter For Cables up to Breaking Load

55.241.03 40 mm 5 mm 700 kg

55.241.04 22 mm 3 mm 500 kg

55.241.06 28 mm 4 mm 500 kg

55.240.05 34 mm 5 mm 700 kg

Osculati Code	Sheave Diameter	For Cables up to	Breaking Load
55.241.03	40 mm	5 mm	700 kg
55.241.04	22 mm	3 mm	500 kg
55.241.06	28 mm	4 mm	500 kg
55.240.05	34 mm	5 mm	700 kg
