Viadana Carbon Fiber Cam Cleats on Ball Bearings for 3-14 mm Sheets

ID 1391472

$ 20.31

1-2 weeks delivery time

Diameter, mm:

3–8
5–14

Item:

Standard
Aluminium Jaws

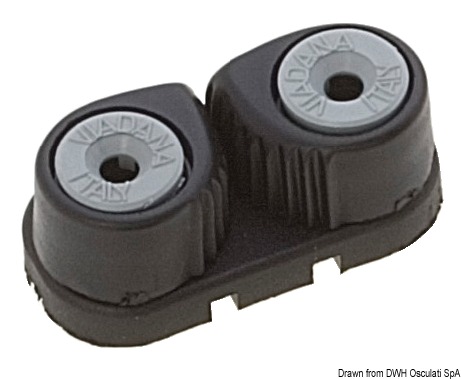

Viadana Cam Cleats are compact sailing rope cleats designed for fast and secure control of sheets and running rigging. The range covers ropes from 3 to 14 mm and includes lightweight carbon fiber versions as well as higher-load light alloy models. Two body sizes are available: 47 x 23 x 20 mm for 3-8 mm ropes and 64 x 30 x 28 mm for larger 5/6-14 mm ropes. Working loads range from 90 to 140 kg depending on construction.

Description
Ask a Question

Viadana Ball Bearing Cam Cleats in Carbon Fiber and Light Alloy for 3-14 mm Sheets - Viadana 25.10 / 25.32 / 25.50 / 25.30 - Osculati 56.025.10 / 56.025.11 / 56.025.32

Viadana Cam Cleats are designed for quick and reliable control of sheets and other frequently adjusted running rigging on sailing boats. The cam mechanism grips the rope when loaded while allowing convenient release and adjustment, making these cleats suitable for cockpit, deck and dinghy control-line installations.

The range combines two construction options. Carbon fiber models provide a lightweight solution with ball-bearing operation for smooth movement of the cams, while light alloy versions offer the same compact mounting formats with increased working load capacity. This allows the cleat to be selected according to rope diameter, installation dimensions and required load.

Two principal sizes are available. The compact format measures 47 x 23 x 20 mm, has a 27 mm mounting centre distance and Ø4 mm fixing holes, and is intended for ropes from 3 to 8 mm. The larger format measures 64 x 30 x 28 mm, uses a 38 mm mounting centre distance and Ø5 mm fixing holes, and is intended for larger ropes up to 14 mm.

Carbon fiber Viadana article 25.10 is rated to a 90 kg working load, while the corresponding 3-8 mm light alloy Viadana article 25.50 increases the working load to 100 kg. In the larger size, Viadana article 25.32 has a 110 kg working load, while light alloy article 25.30 is rated to 140 kg.

The Osculati range includes references 56.025.10, 56.025.11 and 56.025.32. Osculati 56.025.11 uses the compact 3-8 mm format and features anodized aluminium jaws. Optional roller outputs are available for compatible models, including Osculati 56.025.14 for the compact cleats and 56.025.44 for the larger version.

Product Features

Brand: Viadana
Product type: Cam cleat
Available constructions: Carbon fiber and light alloy
Bearing type: Ball bearings on specified versions
Rope capacity range: 3-14 mm across the series
Available body sizes: 47 x 23 x 20 mm and 64 x 30 x 28 mm
Mounting centre distance: 27 mm or 38 mm
Fixing hole diameter: Ø4 mm or Ø5 mm
Working load range: 90-140 kg
Application: Sheets and sailing control lines
Optional roller outputs available for compatible Osculati versions

Available Variants

Rope Size	Material / Version	Dimensions	Centre Distance	Fixing Holes	Working Load	Viadana Article	Osculati Code	FNI Product Number
3-8 mm	Carbon fiber	47 x 23 x 20 mm	27 mm	Ø4 mm	90 kg	25.10	56.025.10	7878730
3-8 mm	Anodized aluminium jaws	47 x 23 x 20 mm	27 mm	Ø4 mm	90 kg	-	56.025.11	-
3-8 mm	Light alloy	47 x 23 x 20 mm	27 mm	Ø4 mm	100 kg	25.50	-	7878735
5-14 mm Osculati / 6-14 mm Viadana	Carbon fiber	64 x 30 x 28 mm	38 mm	Ø5 mm	110 kg	25.32	56.025.32	7878731
6-14 mm	Light alloy	64 x 30 x 28 mm	38 mm	Ø5 mm	140 kg	25.30	-	7878737
