ID
1393840
$ 61.16
1-2 weeks delivery time
-
+
SeaSure 18.14DL is a 4-hole transom-mounted pintle designed for secure rudder or rudderstock attachment. It is manufactured from 316 stainless steel and uses four 5 mm countersunk fixing holes for mounting to the transom. The drop nose pin can be locked to retain the rudder assembly, while the fitting is designed to mate closely with SeaSure gudgeon ranges. Optional packing pieces, part 18.54, are available to increase the stand-off distance from the transom.
- Description
- Ask a Question
-

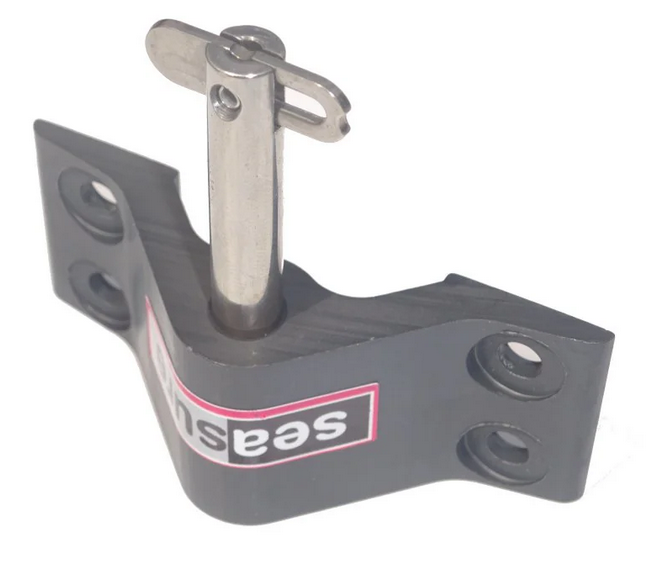

SeaSure 18.14DL 4-Hole Drop Nose Transom Pintle in 316 Stainless Steel
SeaSure 18.14DL is a 4-hole transom-mounted pintle designed for secure attachment of a rudder or rudderstock to the back of the boat.
The fitting is manufactured from 316 stainless steel and uses four 5 mm countersunk fixing holes for installation on the transom.
The pintle pin has a drop nose end that can be locked, helping keep the rudder or rudderstock securely attached during use.
The fitting is designed to fit closely with SeaSure gudgeon ranges. Optional packing pieces are available to increase the distance between the fitting and the transom; the matching packing piece is SeaSure part 18.54.
Product Features
- Brand: SeaSure
- Manufacturer article number: 18.14DL
- Product type: Transom pintle
- Mounting type: Transom mounted
- Material: 316 stainless steel
- Fixing holes: 4
- Fixing hole diameter: 5 mm
- Fixing hole type: Countersunk
- Pin type: Drop nose
- Locking capability: Yes
- Designed for rudder or rudderstock attachment
- Compatible with SeaSure gudgeon ranges
- Optional packing piece: SeaSure 18.54
Technical Specifications
Parameter Specification Manufacturer Article 18.14DL Product Type 4-hole drop nose transom pintle Material 316 stainless steel Mounting Type Transom mounted Fixing Holes 4 x 5 mm countersunk Pin Type Drop nose locking pin Application Rudder / rudderstock attachment Optional Packing Piece SeaSure 18.54 -
