The Wichard 2476 is a 90 mm HR forged snap shackle with a clevis pin swivel, offering complete rotational flexibility and high load resistance. Made from 17.4 PH stainless steel, it features a permanently secured plunger pin with a working load of 1280 kg and breaking load of 3800 kg.
- Description
- Ask a Question
-

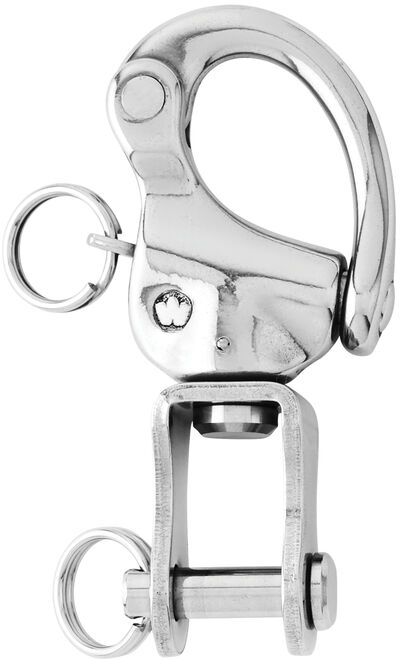

Wichard 2476 - Snap Shackle HR Stainless Steel With Clevis Pin Swivel 90 mm
Constructed from HR forged stainless steel, this snap shackle with clevis pin swivel combines strength with complete rotational flexibility. The permanently secured plunger pin ensures dependable operation, while its design supports demanding marine applications where high load resistance is essential.
- Material: HR 17.4 PH stainless steel grade
- Length (mm): 90
- Working load (kg): 1280
- Breaking load (kg): 3800
- Weight (g): 154

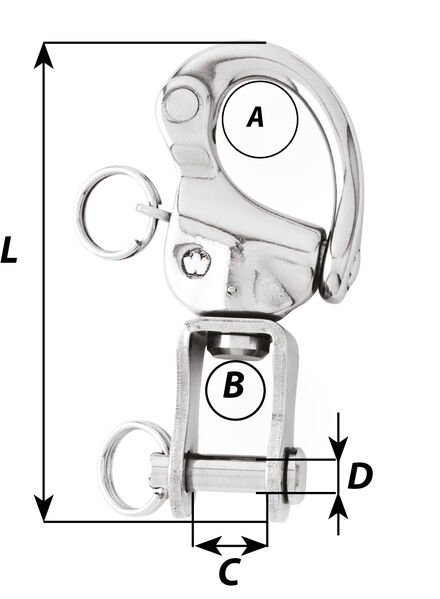

- A (mm): 21
- B (mm): 17
- C (mm): 11
- d diameter (mm): 7
- Item number: WR2476
-
