The Wichard 2465 is a heavy-duty forged swivel with an eye and fork design, made from HR 17.4 PH stainless steel, offering high working and breaking loads. It is ideal for connecting parts with independent rotation but is not intended for mooring applications, measuring 105 mm in length with a working load of 3200 kg and breaking load of 6000 kg.
- Description
- Ask a Question
-

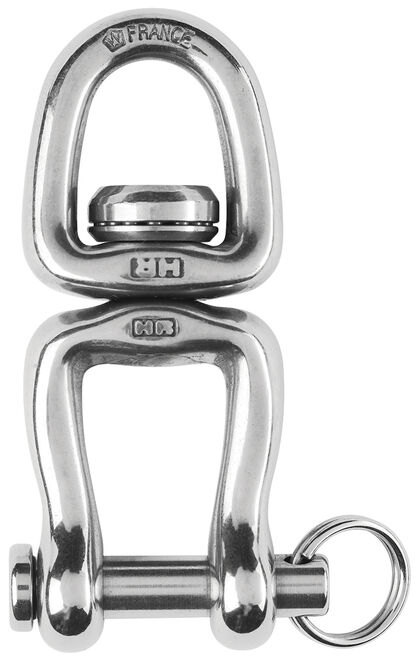

Wichard 2465 - Swivel With Eye And Fork HR Stainless Steel 105 mm
Heavy-duty forged swivel combining an eye and a fork, offering high load capacity and resistance. Ideal for linking parts with independent rotation. Not to be used for mooring applications.
- HR forged swivel (17.4 Ph) with one opening side and one eye
- Outstanding working and breaking loads
- Applications: Link two pieces with different rotation
- Do not use for mooring applications
- Materials: HR 17.4 PH stainless steel grade

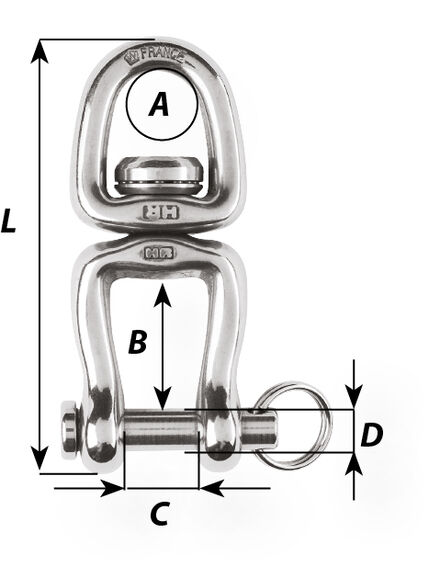

- Length (mm): 105
- Working load (kg): 3200
- Breaking load (kg): 6000
- Weight (g): 280
- A (mm): 19
- B (mm): 31
- C (mm): 18
- D diameter (mm): 11
- Item number: WR2465
-
