ID
1384122
$ 29.45
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
Item:
- 2 pcs
The Peguet Delta Stainless Steel 316 Shackle Links are premium triangular threaded connecting links designed for secure fastening where a delta-shaped connector is preferred. Manufactured from corrosion-resistant AISI 316 stainless steel and distributed by Plastimo, the range includes Ø5 mm to Ø10 mm sizes with working loads up to 1,200 kg and break loads up to 6,000 kg, making them ideal for marine rigging, sailing and industrial applications.
- Description
- Ask a Question
-

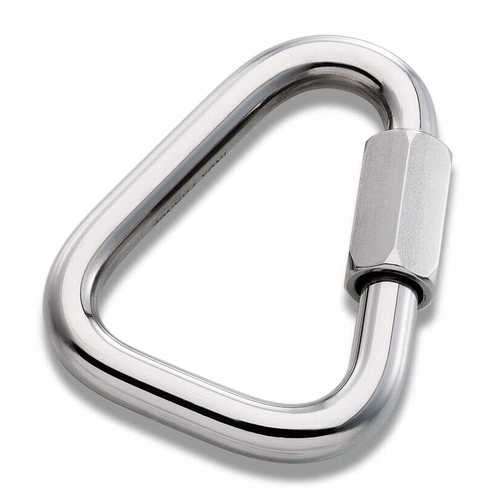

Peguet Delta Stainless Steel 316 Shackle Links
The Peguet Delta Stainless Steel 316 Shackle Links are heavy-duty triangular connecting links designed for secure fastening in marine, sailing and industrial environments. Their distinctive delta shape provides an efficient connection point where conventional oval links are less suitable, while the threaded closure allows quick installation and reliable locking.
Manufactured from premium AISI 316 stainless steel, these shackle links offer excellent corrosion resistance in seawater and harsh outdoor conditions. Distributed by Plastimo, the Delta series combines high mechanical strength with long service life for demanding applications.
Key Features
- Original Peguet Delta shackle links
- Distributed by Plastimo
- Delta (triangular) design
- Manufactured from AISI 316 stainless steel
- Threaded screw closure
- Excellent corrosion resistance
- Suitable for marine, sailing, rigging and industrial applications
- Available in Ø5 mm, Ø6 mm, Ø8 mm and Ø10 mm sizes
Available Variants
Plastimo SKU Peguet Part No. Diameter Aperture Break Load Working Load 414138 PEGUET DELTA INOX 5 Ø5 mm 6.5 mm 1625 kg 325 kg 414139 PEGUET DELTA INOX 6 Ø6 mm — — — 414140 PEGUET DELTA INOX 8 Ø8 mm 10 mm 3850 kg 770 kg 414141 PEGUET DELTA INOX 10 Ø10 mm — — —
Technical Specifications
Brand Peguet Distributor Plastimo Product Type Delta Threaded Shackle Link Material Stainless Steel 316 (AISI 316) Diameter Range Ø5 mm – Ø10 mm Working Load 325–770 kg (where specified) Break Load 1625–3850 kg (where specified) Applications Marine rigging, sailing hardware, chain connections, lifting equipment, industrial fastening
Applications
- Standing and running rigging
- Marine deck hardware
- Chain and rope connections
- Sailing equipment
- Industrial fastening
- General outdoor applications
-
