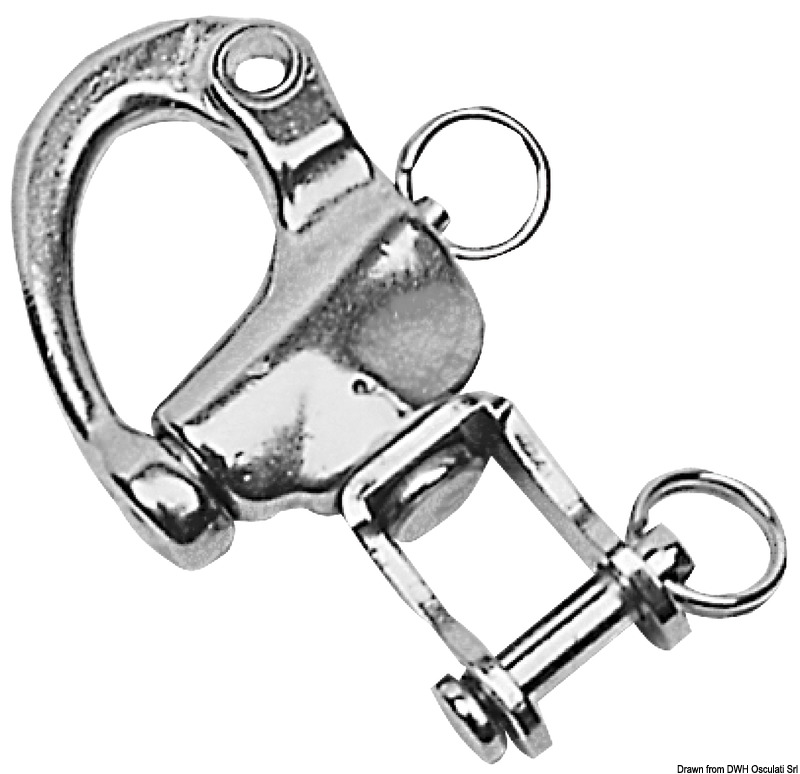

Osculati AISI 316 Stainless Steel Swivel Snap Shackle with Fork for Spinnakers and Halyards

ID 1382157

$ 10.14

1-2 weeks delivery time

Length, mm:

Item:

1 pcs

The Osculati Swivel Snap Shackle with Fork is manufactured from mirror-polished AISI 316 stainless steel and features a swivelling eye with fork connection for maximum articulation and reduced line twist. Available in 70 mm, 87 mm, and 128 mm lengths, it is designed for spinnakers, halyards, and a wide range of sailing and marine rigging applications.

Description
Ask a Question

Osculati AISI 316 Stainless Steel Swivel Snap Shackle with Fork for Spinnakers and Halyards – 70-128 mm

The Osculati Swivel Snap Shackle with Fork is manufactured from mirror-polished AISI 316 stainless steel, offering outstanding corrosion resistance and long service life in demanding marine environments.

Designed with a quick-release snap shackle, a swivelling eye, and an integrated fork connection, this fitting provides excellent articulation while minimizing twisting of running rigging. It is particularly suitable for sail handling systems where smooth movement and reliable operation are essential.

Key Features

Original Osculati marine hardware
Mirror-polished AISI 316 stainless steel construction
Quick-release snap shackle mechanism
Integrated swivelling eye for unrestricted rotation
Fork connection for secure attachment
Excellent corrosion resistance in marine environments
Designed for demanding sailing and rigging applications

Available Variants

Osculati Code	Length (L)	Dimension A	Dimension B	Dimension C	Working Load	Breaking Load
09.939.01	70 mm	12 mm	12 mm	12 mm	163 kg	640 kg
09.939.02	87 mm	16 mm	13 mm	13 mm	224 kg	880 kg
09.939.03	128 mm	22 mm	16 mm	22 mm	416 kg	1630 kg

Applications

Ideal for spinnakers, halyards, sheets, sail handling systems, running rigging, deck hardware, and other marine applications requiring a reliable quick-release snap shackle with swivel and fork connection.
