ID
1299555
$ 352.13
1-2 weeks delivery time
-
+
The Harken 9036 footblock is fixed to the deck with a 45 mm tulip sheave that realigns rope leads under imperfect alignment, reducing friction from off-center loading and supporting a maximum working load of 998 kg.
- Description
- Ask a Question
-

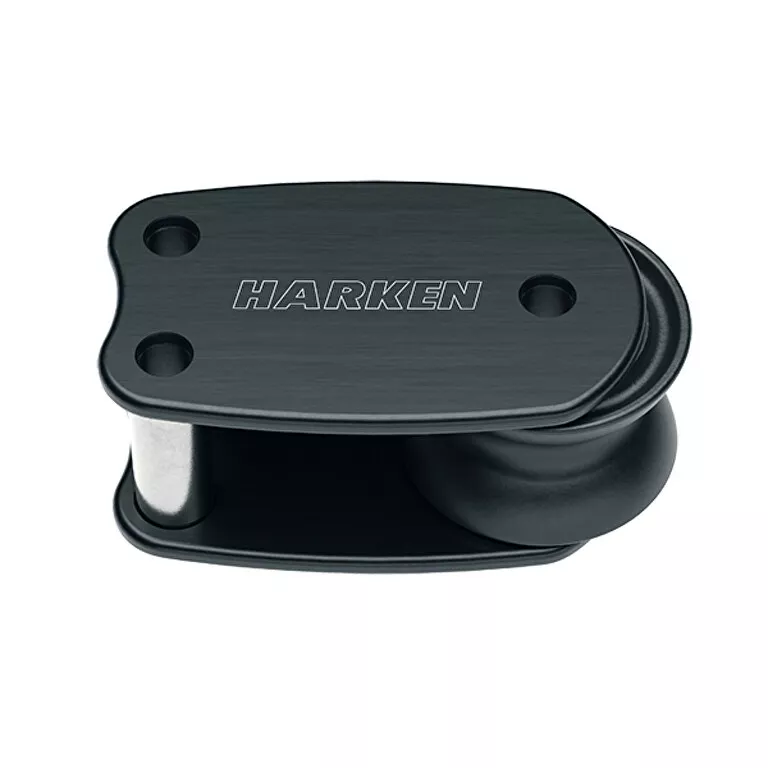

Harken 9036 - 45 mm Tulip Footblock
Fixed to the deck, this footblock features a tulip sheave design that realigns rope leads where alignment is imperfect. It reduces friction that would occur with conventional narrower sheaves under off-center loading.
- Sheave Ø: 45 mm (1 3/4 in)
- Length: 91 mm (3 9/16 in)
- Width: 50 mm (2 in)
- Height: 41 mm (1 5/8 in)
- Weight: 172 g (5/16 oz)
- Maximum line Ø: 12 mm (1/2 in)
- Number of fasteners: 3, 8 mm (5/16 in)
- Maximum working load: 998 kg (2200 lb)
- Breaking load: 1996 kg (4400 lb)
- Item number: HK9036
-
