The Harken 7412.11 Unit 2 MKIV Underdeck Furling System is designed for racers and cruisers seeking minimal deck equipment, placing the drum below deck to reduce tack height and increase sail area, compatible with headstays up to 20.51 m.
- Description
- Ask a Question
-

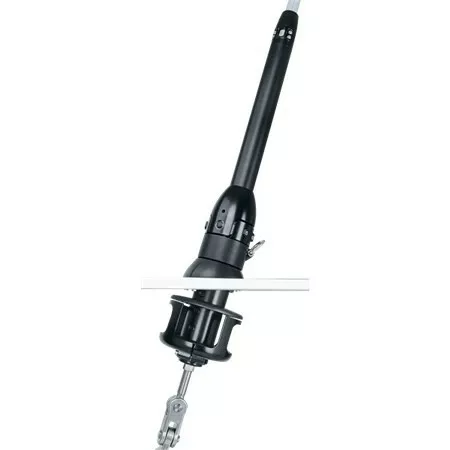

Harken 7412.11 5/8 - Unit 2 MKIV Underdeck Furling System
The Harken 7412.11 Unit 2 MKIV Underdeck Furling System is built for racers and cruisers seeking minimal above-deck equipment and optimal aerodynamic performance. With the drum positioned below deck, it reduces the tack height and increases usable sail area for better efficiency and control.
- Item number: HK7412.11 5/8
- B (mm): 167 mm
- B (in): 6 5/8 in
- Wire Ø (1 x 19 SS) (mm): 10 mm
- Wire Ø (1 x 19 SS) (in): 5/16 in
- Rod Ø (mm): 8.38 mm
- Rod Ø (dash): -17
- Clevis pin Ø (mm): 15.9 mm
- Clevis pin Ø (in): 5/8 in
- Standard headstay length (m): 18.38 m
- Standard headstay length (ft in): 60.4 ft in
- Maximum headstay length (m): 20.51 m
- Maximum headstay length (ft in): 67' 4" ft in
- A minimum (mm): 322 mm
- A minimum (in): 12 11/16 in
- A maximum (mm): 471 mm
- A maximum (in): 18 9/16 in
- C minimum (mm): 137 mm
- C minimum (in): 5 3/8 in
- C maximum (mm): 287 m
- C maximum (in): 11 5/16 in
- J (mm): 32 mm
- J (in): 1 1/4 in
- K (mm): 36 mm
- K (in): 1 3/8 in

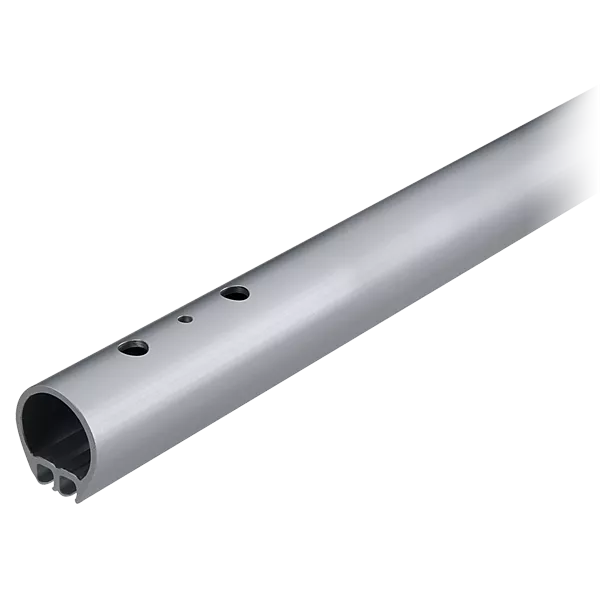

- Extrusion length (m): 2.13 m
- Extrusion length (ft in): 7' ft in
- Luff tape size (mm): 5 mm
- Luff tape size (in): #6 (6/32) in
-
