The Harken 6276 Element footlock lockoff features forged aluminum sideplates, minimal metal protection for the sheave, and a proven journal bearing, providing durability and cost-effective performance.
- Description
- Ask a Question
-

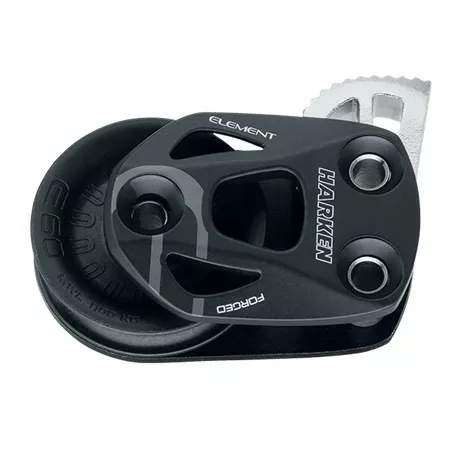

Harken 6276 - 60mm Aluminum Element Footlock Lockoff, Left
The Element blocks feature sideplates crafted from forged aluminum with compound curves, delivering both modern aesthetics and exceptional strength. Designed to use the minimum metal necessary to protect the sheave, they incorporate a proven journal bearing. This efficient design allows Element blocks to be priced significantly lower than previous models of similar size. The sideplates are hardcoat-anodized for corrosion resistance, and the composite bearing sheave ensures long-lasting durability.
- Sheave Ø: 60 mm (2 3/8 in)
- Length: 102 mm (4 in)
- Height: 30 mm (1 3/16 in)
- Weight: 210 g (7.4 oz)
- Maximum line Ø: 14 mm (9/16 in)
- Maximum working load: 1100 kg (2425 lb)
- Breaking load: 2200 kg (4850 lb)
- Fasteners: 8 mm
- A dimension: 12.5 mm (1/2 in)
- B dimension: 54.5 mm (2 5/32 in)
- C dimension: 60 mm (2 3/8 in)
- D dimension: 14 mm (9/16 in)
- Item number: HK6276
-
