The Harken 6237 Element Single Footblock has forged aluminum sideplates with compound curves, protects a 45mm sheave with minimal metal and a journal bearing, and offers a robust, corrosion-resistant design at a lower price.
- Description
- Ask a Question
-
Harken 6237 - 45mm Aluminum Element Single Footblock

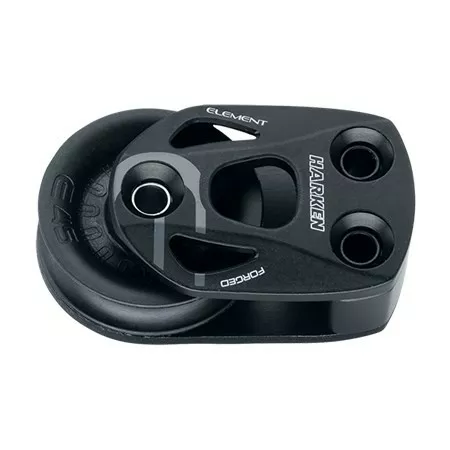

The Element Single Footblock features sideplates crafted from forged aluminum with compound curves, delivering a blend of modern design and exceptional strength. It uses the minimum metal necessary to protect the 45 mm sheave, which is supported by a proven journal bearing. This design offers a robust and corrosion-resistant block at a significantly lower price compared to previous models. The sideplates are hardcoat-anodized, and the composite bearing sheave ensures long-lasting corrosion resistance.
- Sheave Ø: 45 mm (1 3/4 in)
- Length: 76 mm (3 in)
- Height: 25 mm (1 in)
- Weight: 100 g (3.5 oz)
- Maximum line Ø: 12 mm (1/2 in)
- Maximum working load: 700 kg (1543 lb)
- Breaking load: 1400 kg (3086 lb)
- Fasteners: 6 mm
- A dimension: 11 mm (7/16 in)
- B dimension: 41.5 mm (1 5/8 in)
- C dimension: 45 mm (1 3/4 in)
- D dimension: 9.5 mm (3/8 in)
- Item number: HK6237
-
